The InWin DLITE brings a refined, cohesive aesthetic and clever engineering to the mid-tower PC case market. With its eye-catching mesh front panel and aluminium accents, it melds elegance and functionality through a wealth of modern features. These include back-connector motherboard support, ample cooling flexibility, and pre-installed fans, making DLITE an intriguing option for those who prioritise a high-quality build with subtle style.
InWin DLITE
€129
Pros
- Four pre-installed 120mm fans and RGB hub
- Support for both horizontal/vertical GPU mounting
- Wide compatibility with back-connector motherboards
- Aluminium accents and unique colour options
- Up to 10 fan mounts offer versatile cooling support
Cons
- No rubber grommets on cable holes
- Feet don’t look great
- Expansion slots not tool-free
- Slightly limited GPU and PSU space for top-end components
Club386 may earn an affiliate commission when you purchase products through links on our site.
How we test and review products.

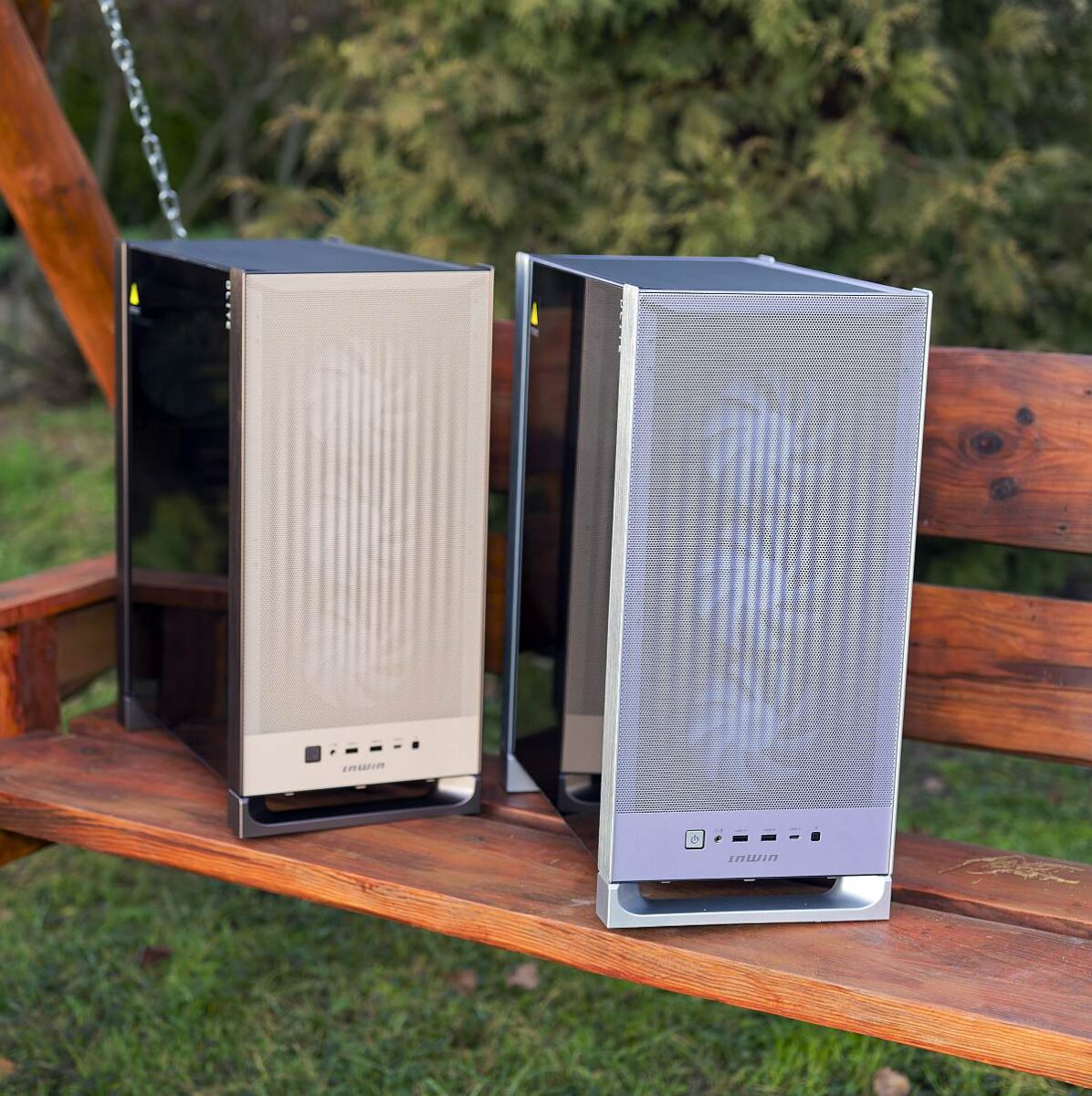

What makes the InWin DLITE stand out is a blend of modern aesthetic and practical modularity, taking design inspiration from the Taiwanese manufacturer’s Dubili model. Unlike most mid-tower cases, it boasts a distinctive wavy-mesh front, brushed-aluminium highlights, and support for the latest back-connector motherboards, so cable clutter stays out of sight. Available in Mocha Bronze and Lilac Silver finishes, it feels fresher than the usual monochromatic options.
Despite a modest 441 x 323 x 550mm footprint, DLITE accommodates up to a 360mm radiator in the front and a 360mm radiator in the top, as well as up to 380mm-long graphics cards. Its power supply compatibility is limited to units up to 200mm long, which covers most but not all high-wattage PSUs, so careful selection is advised. That’s serious flexibility without sprawling into oversized territory, and the four pre-installed InWin XM120 fans ensure healthy airflow right off the bat. Better still, they’re connected to an included fan/ARGB hub that simplifies cable management and lighting synchronisation.
Specifications

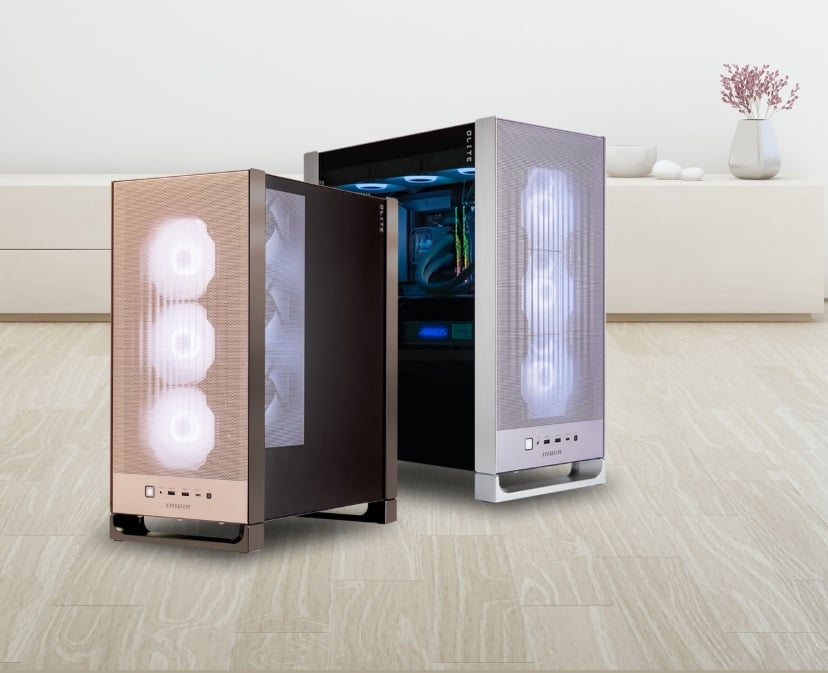

The InWin DLITE comes in two main colourways, Mocha Bronze and Lilac Silver, each accented by a premium 3mm aluminium strip. Well, that’s the case for non-USA versions that are available now. Over the pond, recent tariffs mean that InWin will release a DLITE variant without the aluminium strip, likely in Q1 2026.
The tempered glass side panel is tinted, which improves visual stealth but reduces internal visibility of RGB-lit components. Its steel frame weighs 9.25kg, and in a market that’s getting pricier by the day, InWin’s MSRP is an affordable €129.
| Specifications | InWin DLITE |
| Dimensions (HxWxD) | 441 x 323 x 550mm (~57-litre volume) |
| Weight | 9.25kg |
| Motherboard compatibility | ATX, micro-ATX, mini-ITX |
| Expansion slots | 8 |
| Max GPU length | 380mm |
| Max CPU cooler height | 165mm |
| Max PSU length | Up to 200mm ATX, SFX, SFX-L |
| Storage | 2 x 2.5in SSD/2 x 3.5in HDD |
| Pre-installed fans | InWin XM120 (3x Front, 1x Back) |
| Fan mounts | Front: 3x 120mm (Pre-installed) Top: 3x 120/2x 140mm Rear: 1x 120/140mm (Pre-installed) Bottom: 2x 120mm (Optional, screws not included) Side: 3x 120mm |
| Radiator support | Front: 1x 360mm Top: 1x 280/360mm Rear: 120mm |
| Front I/O ports | 1 x USB 3.2 Gen 2 Type-C (20Gbps), 2 x USB 3.2 Gen 1 Type-A (5Gbps), Audio |
| Lighting control | Yes |
| Materials | SPCC, Tempered Glass, Aluminium, ABS |
| MSRP | €129.00 |
Unboxing and product tour

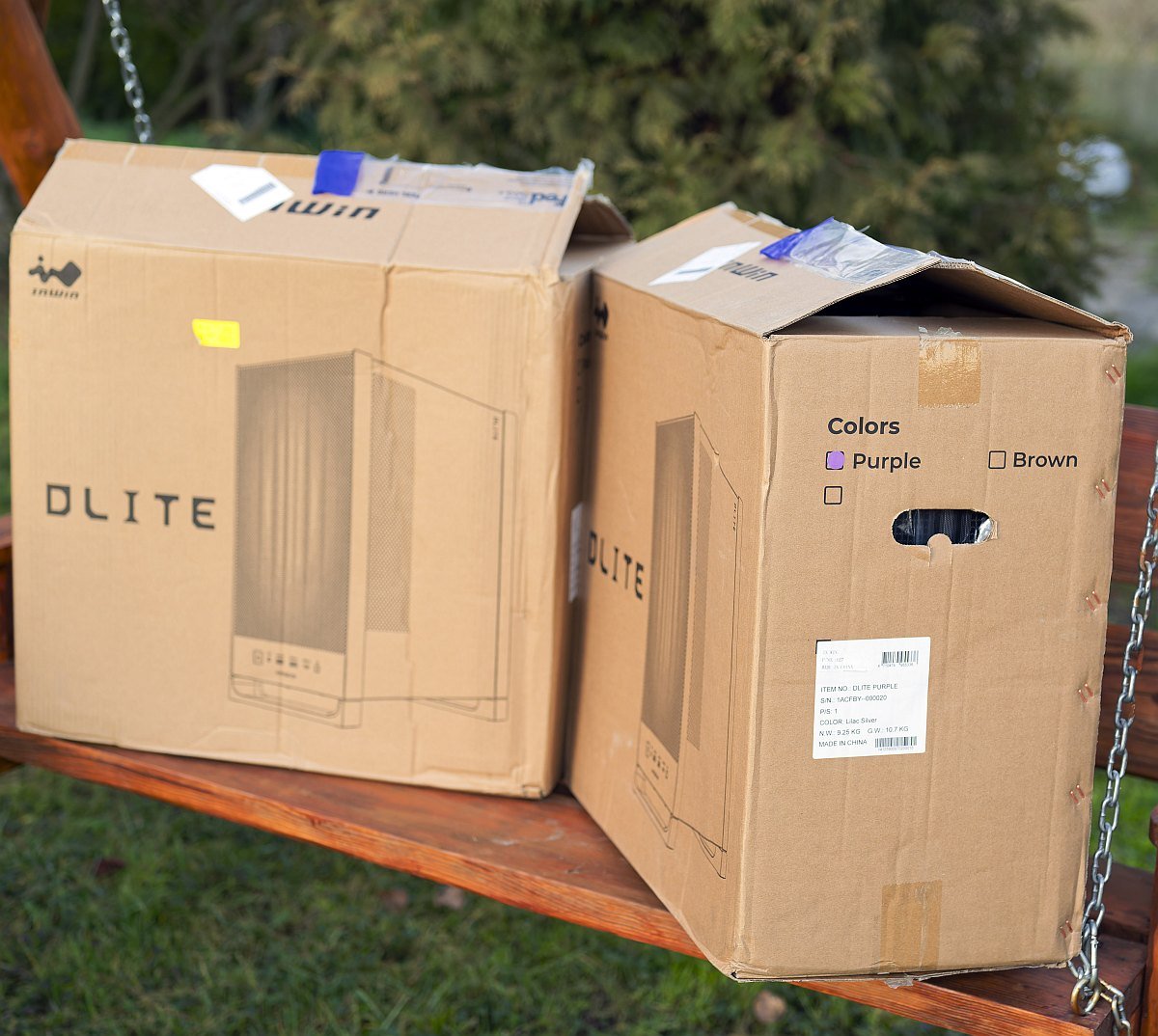

True to InWin’s reputation, DLITE arrives in a sturdy package with clear branding and foam protection. There’s a picture of the chassis printed on both main sides and two cutouts help you lift the package.

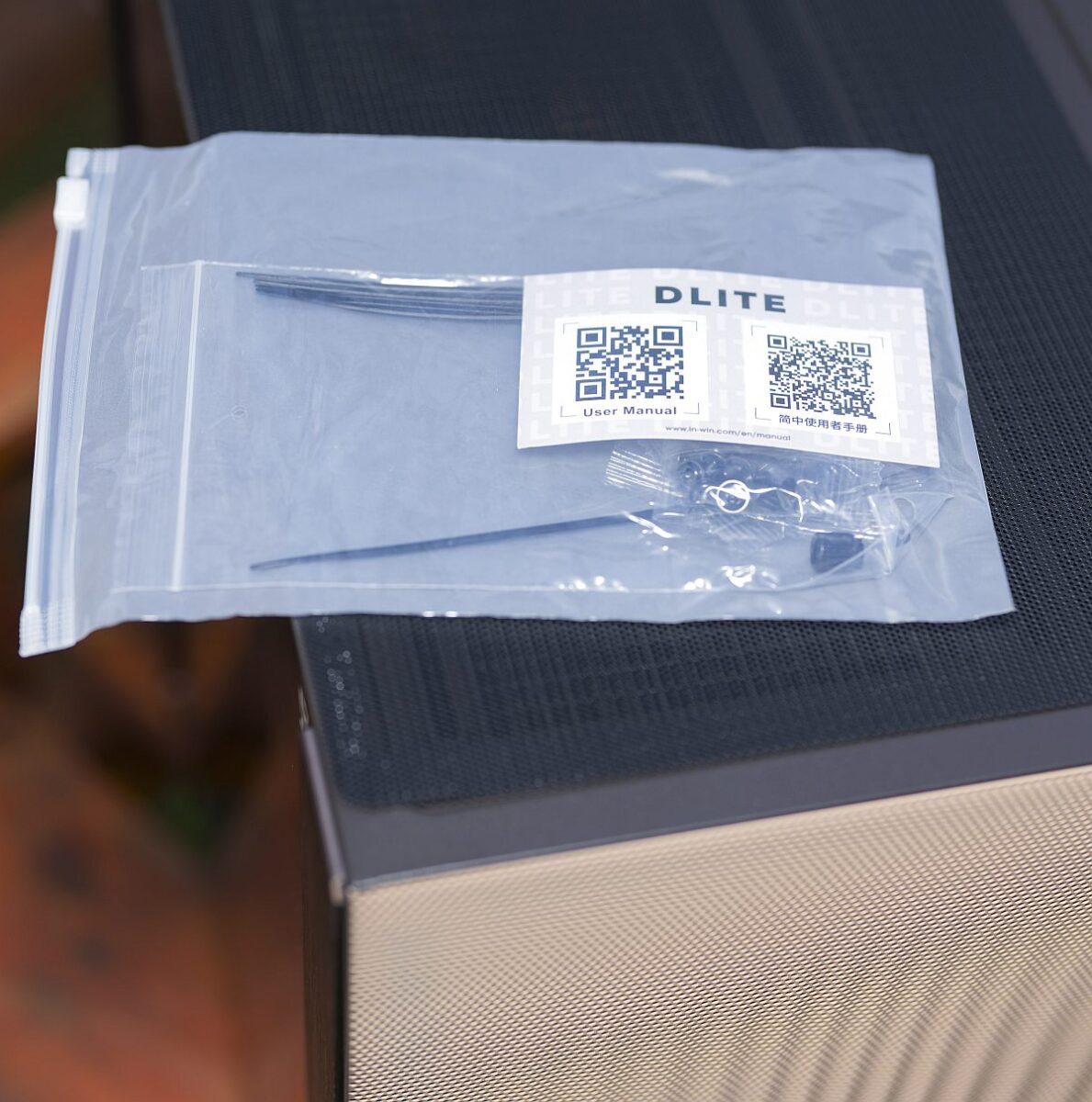

Inside, you’ll find a manual, six cable ties, mounting screws, and the important accessories for drive, PSU and motherboard installation. There’s also a QR Code Card if you want to check the web version of a manual.

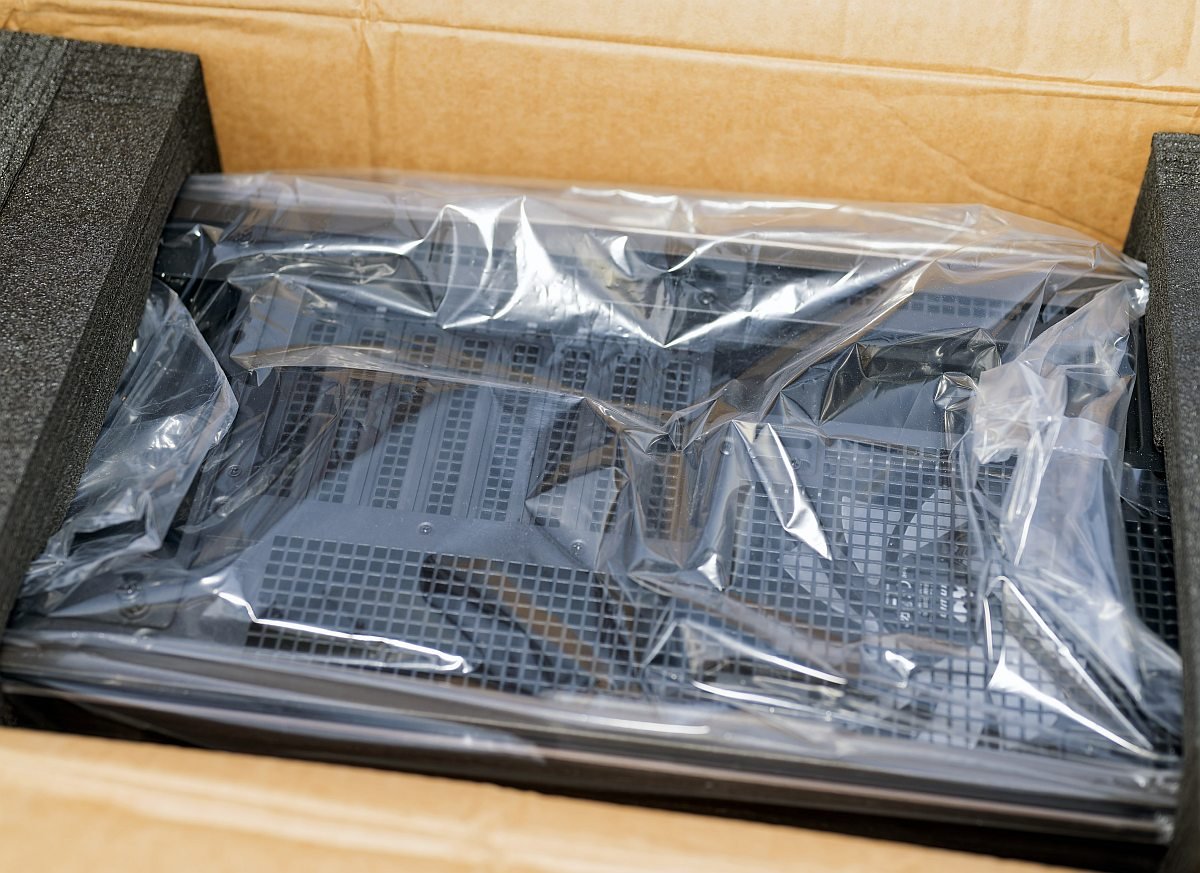

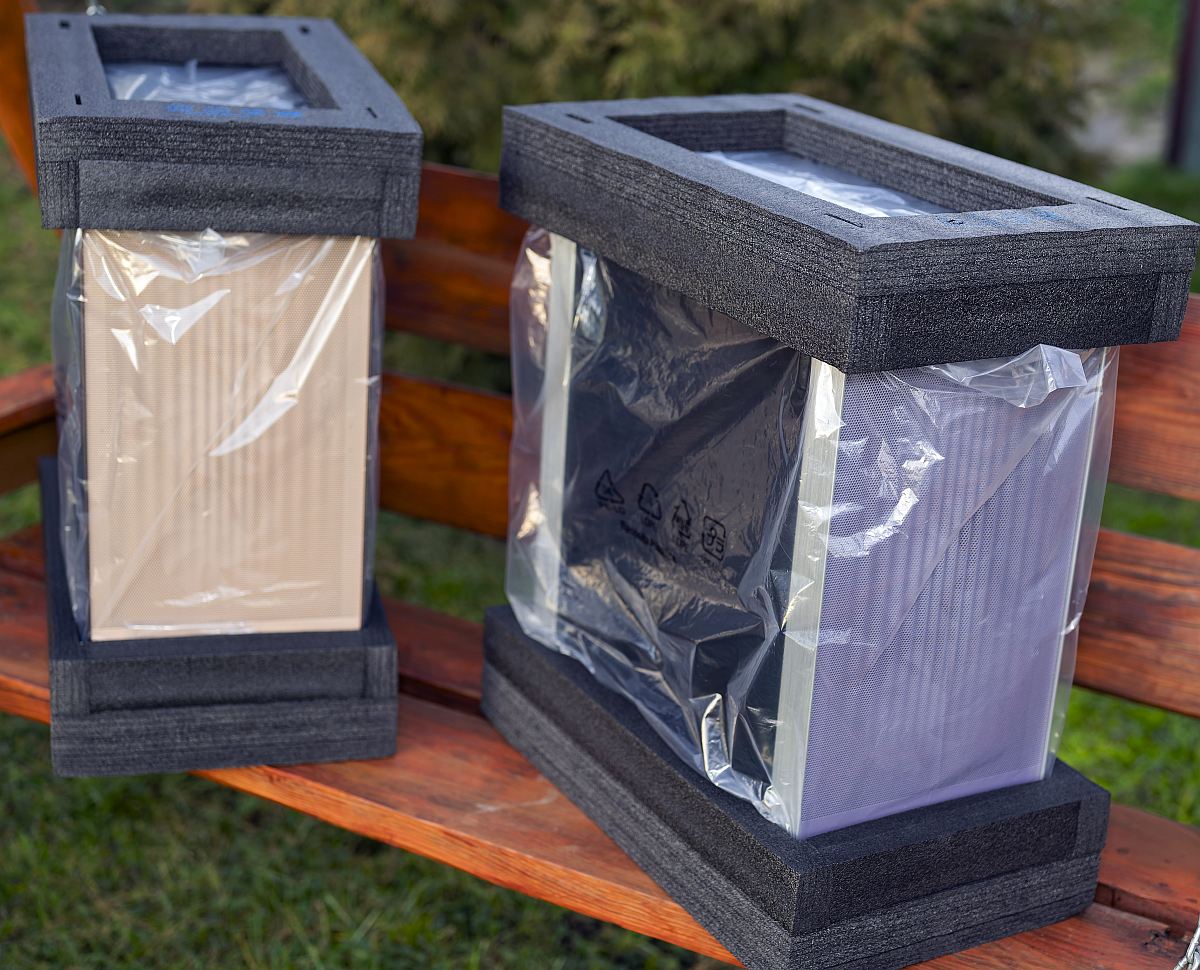

The tempered glass side is safely cushioned, emphasising the importance of careful delivery. It is tinted relatively dark, offering privacy for internal components but dampening the glow of internal RGB lighting.
Exterior Inspection

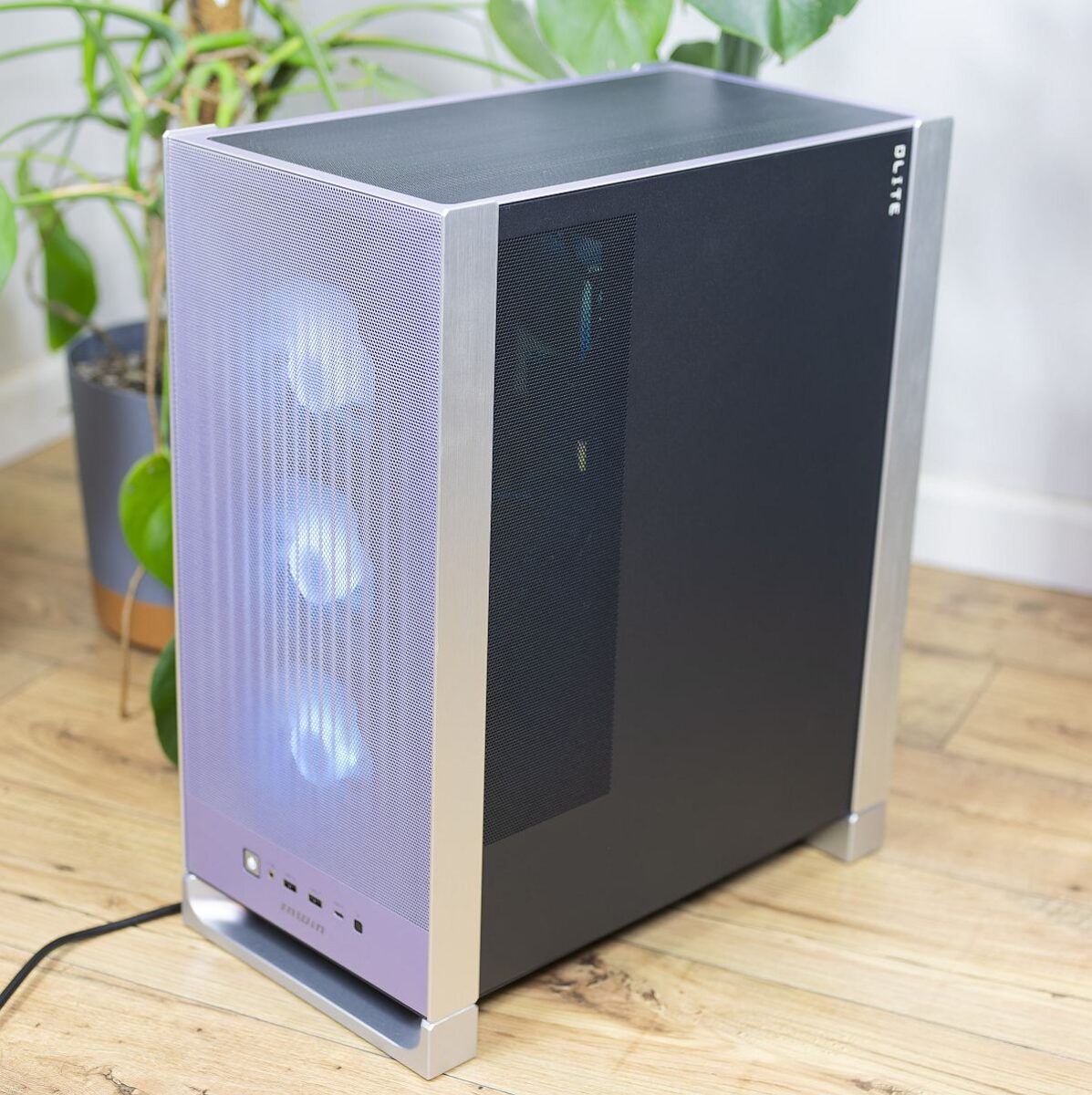

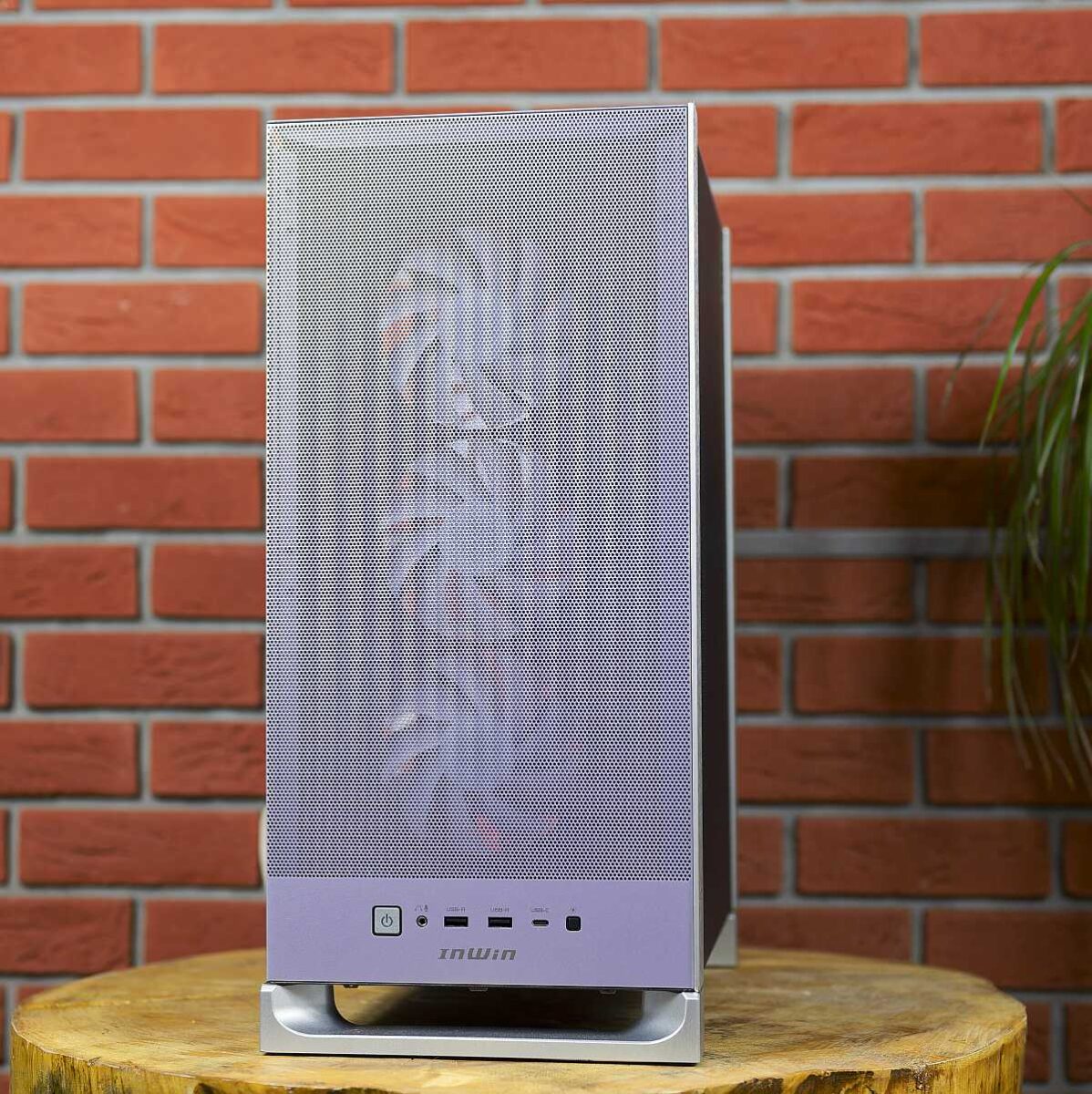

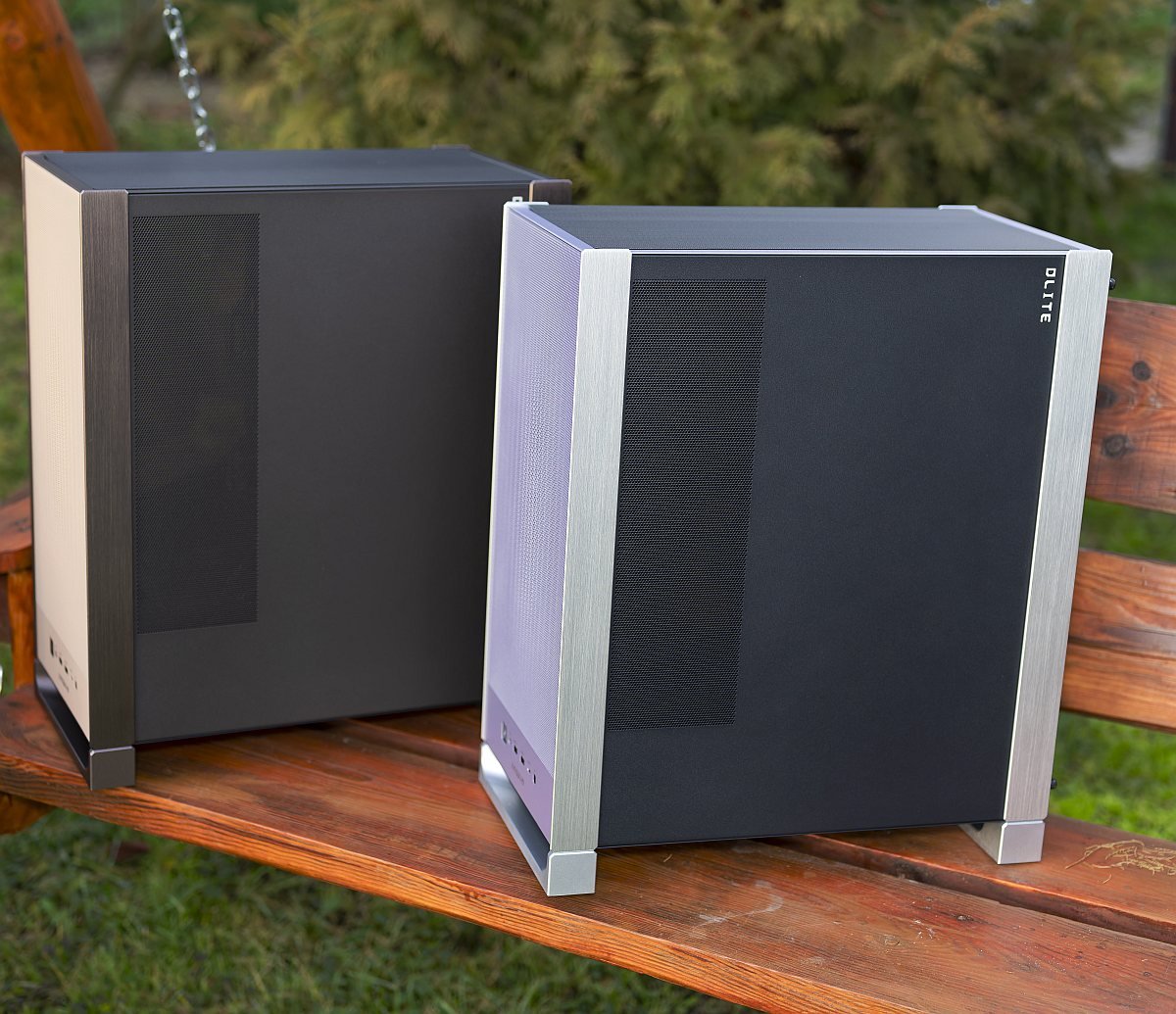

The DLITE certainly catches your eye with its vertical mesh motif and aluminium details, lending the case genuine upmarket appeal. It’s a mid-tower with a streamlined silhouette and weighty feel, so while robust and stable, it’s not particularly portable, especially with a full system in tow.

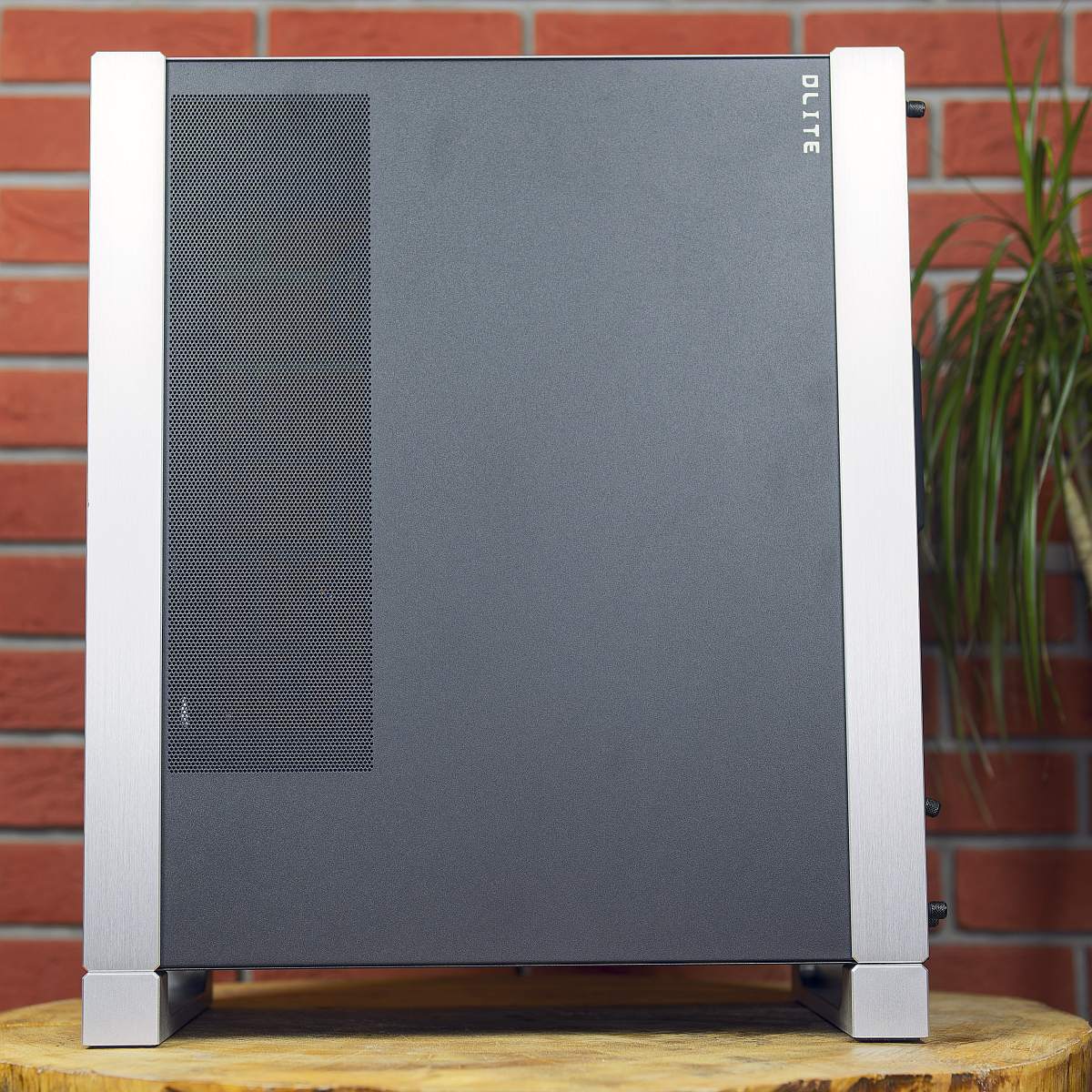

Motherboard compatibility includes ATX, Micro-ATX and Mini-ITX, and – in a rare plus for cable management – DLITE supports the latest back-connector models from the likes of ASUS, MSI, and Gigabyte, hiding clutter for professional-looking builds. The side panel secures with thumb screws making upgrades or maintenance straightforward.

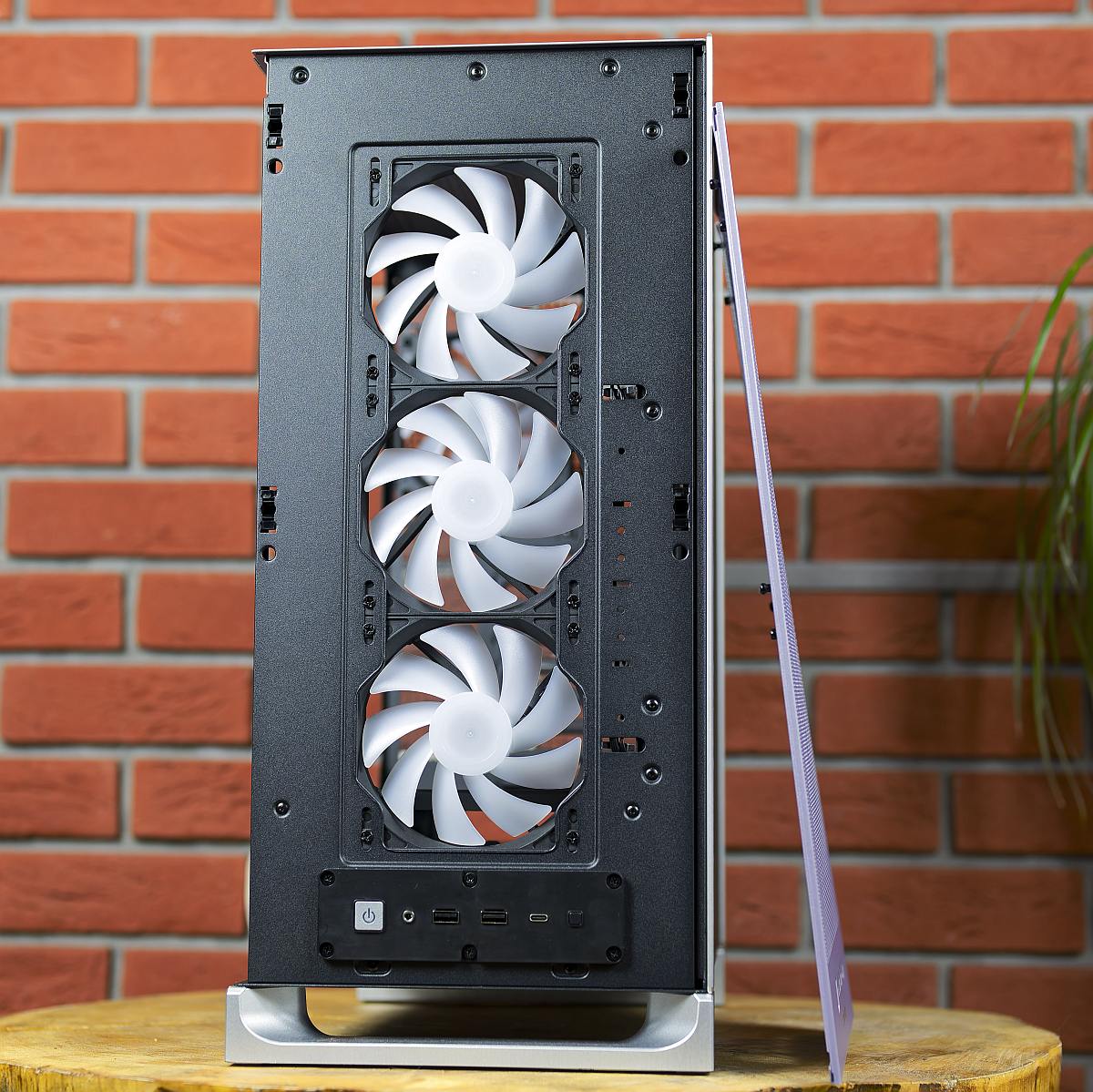

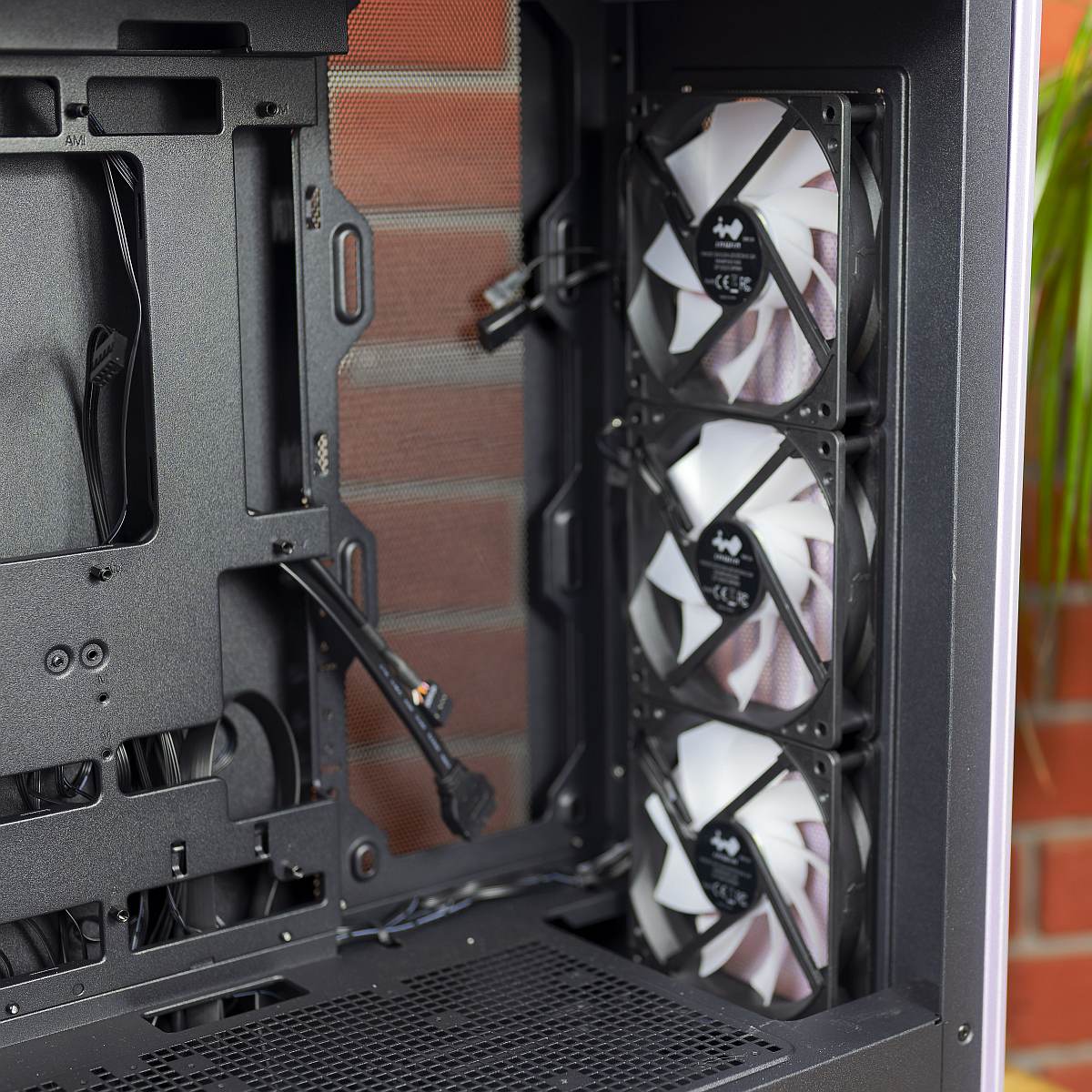

After removing the front panel you can see three of the four preinstalled 120mm fans, representing good value at this price point.

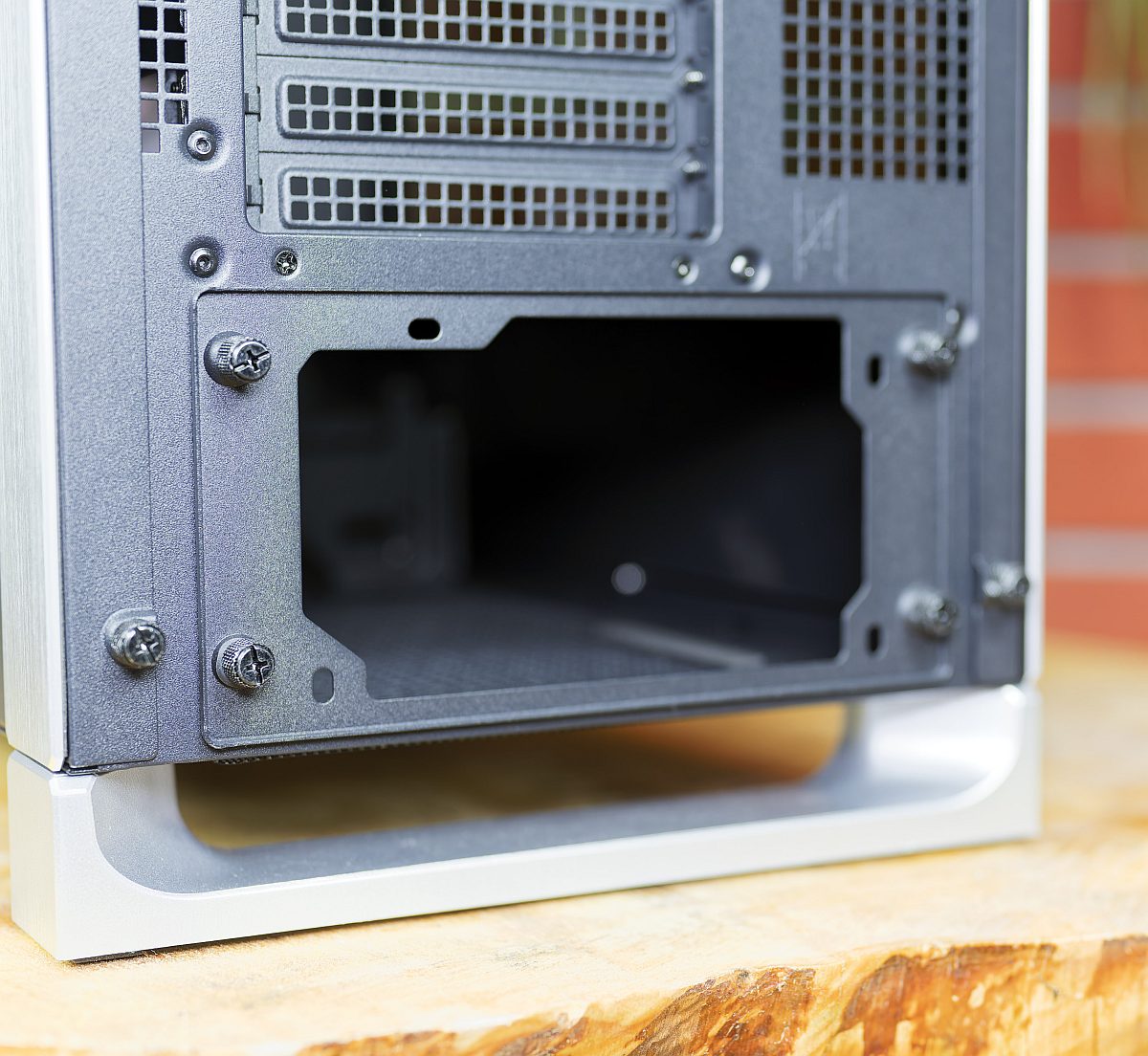

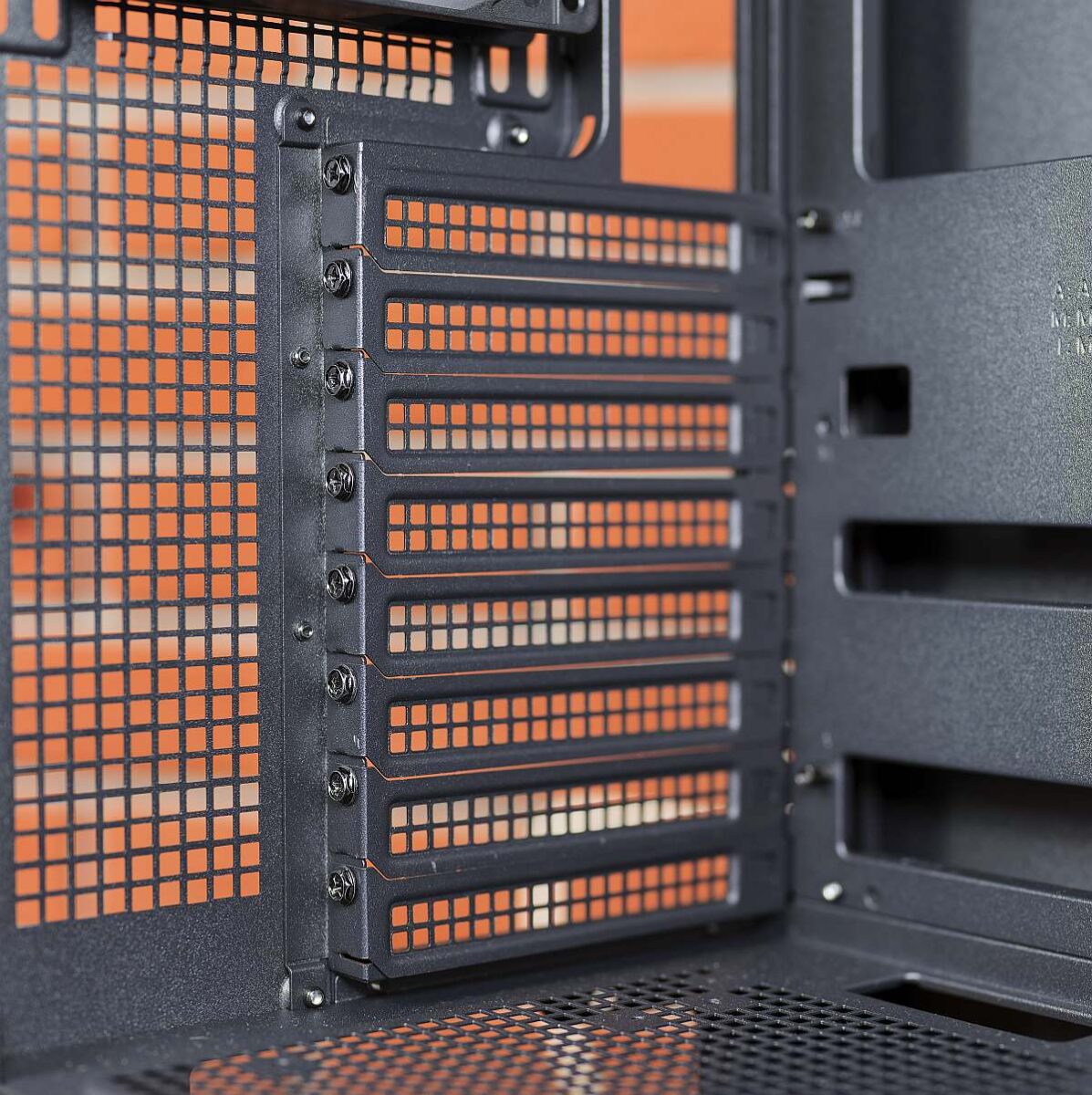

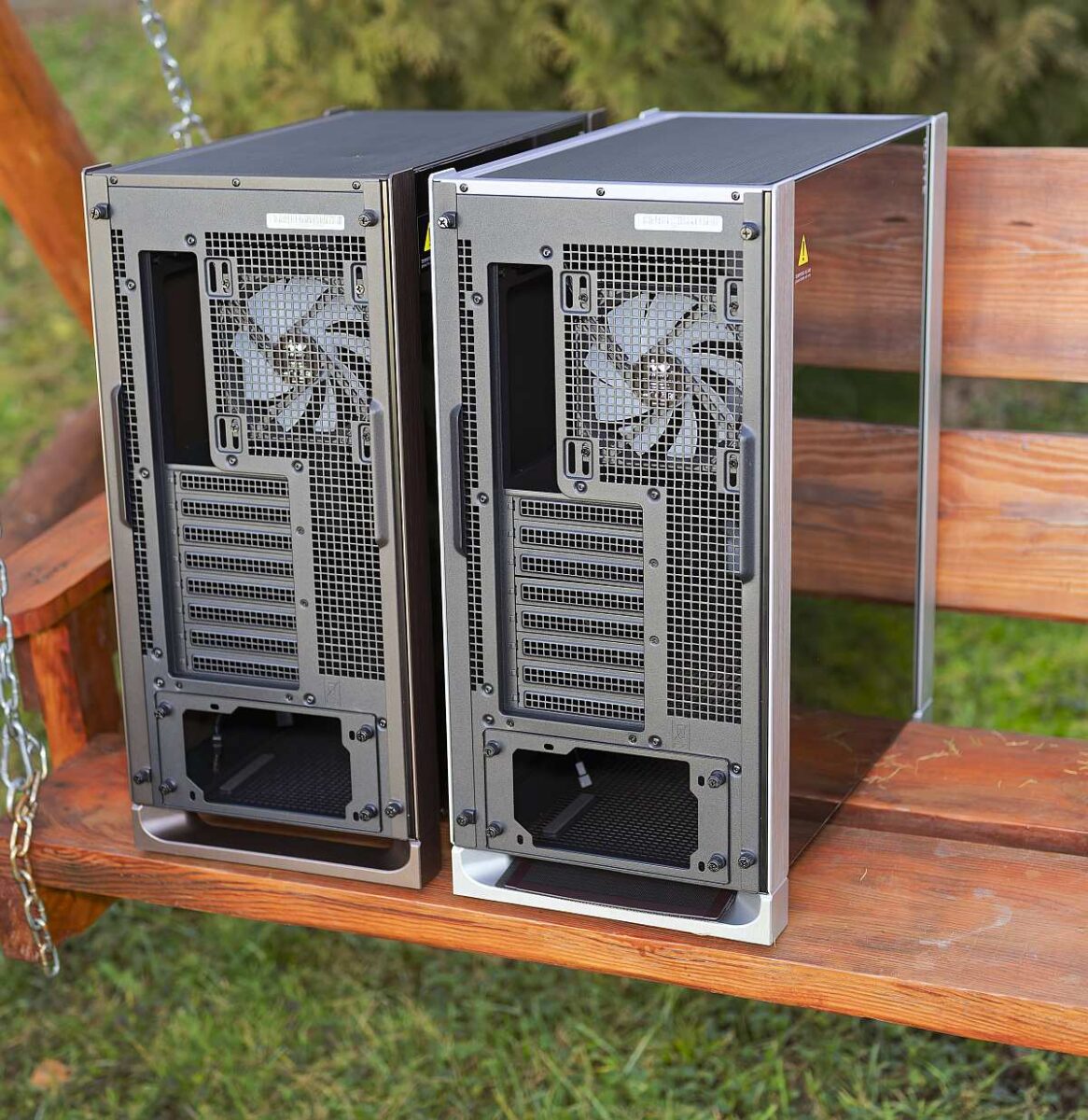

At the back there are eight expansion slots. The PSU bracket is removable, so it allows easier installation of the power supply.

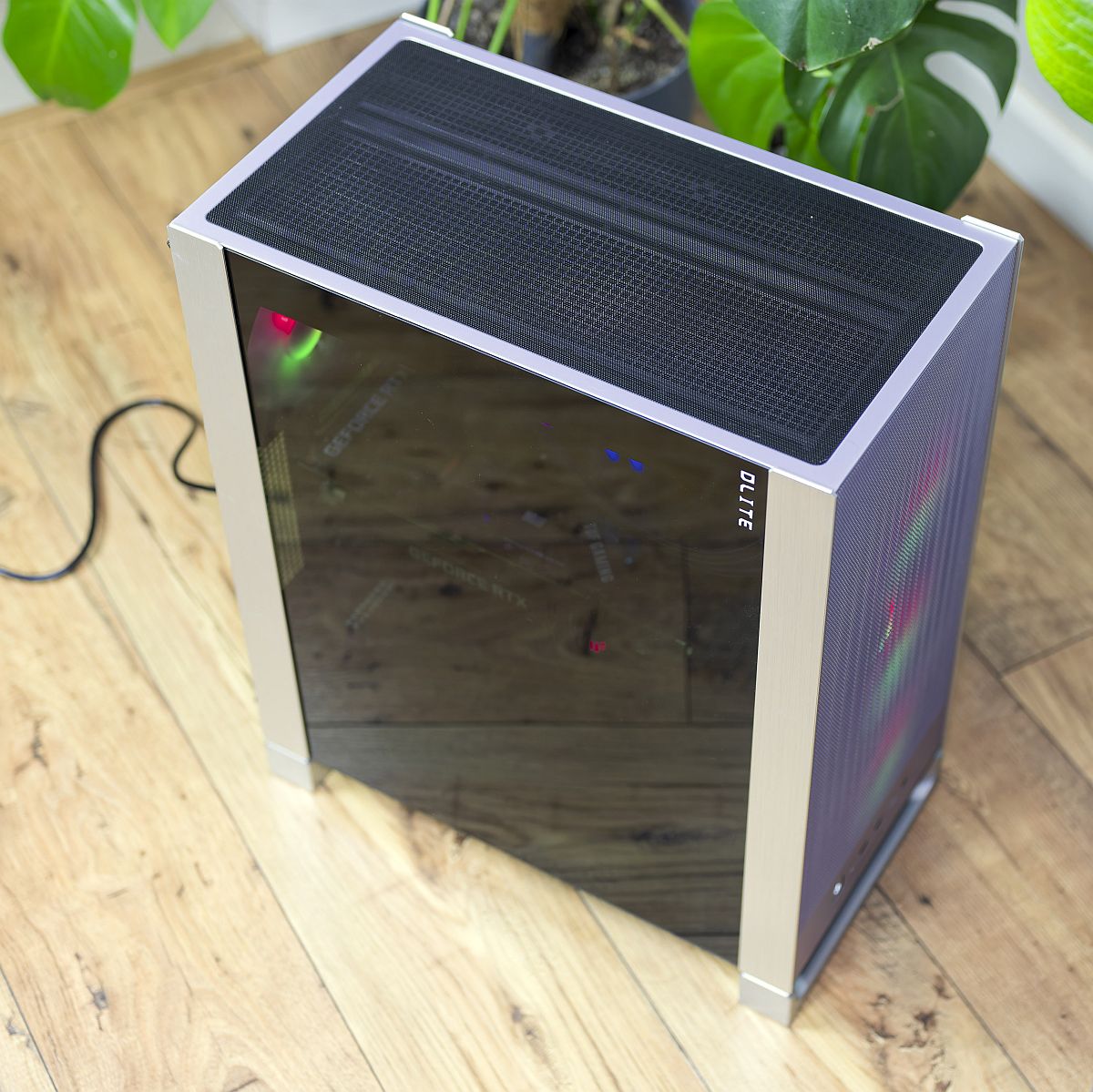

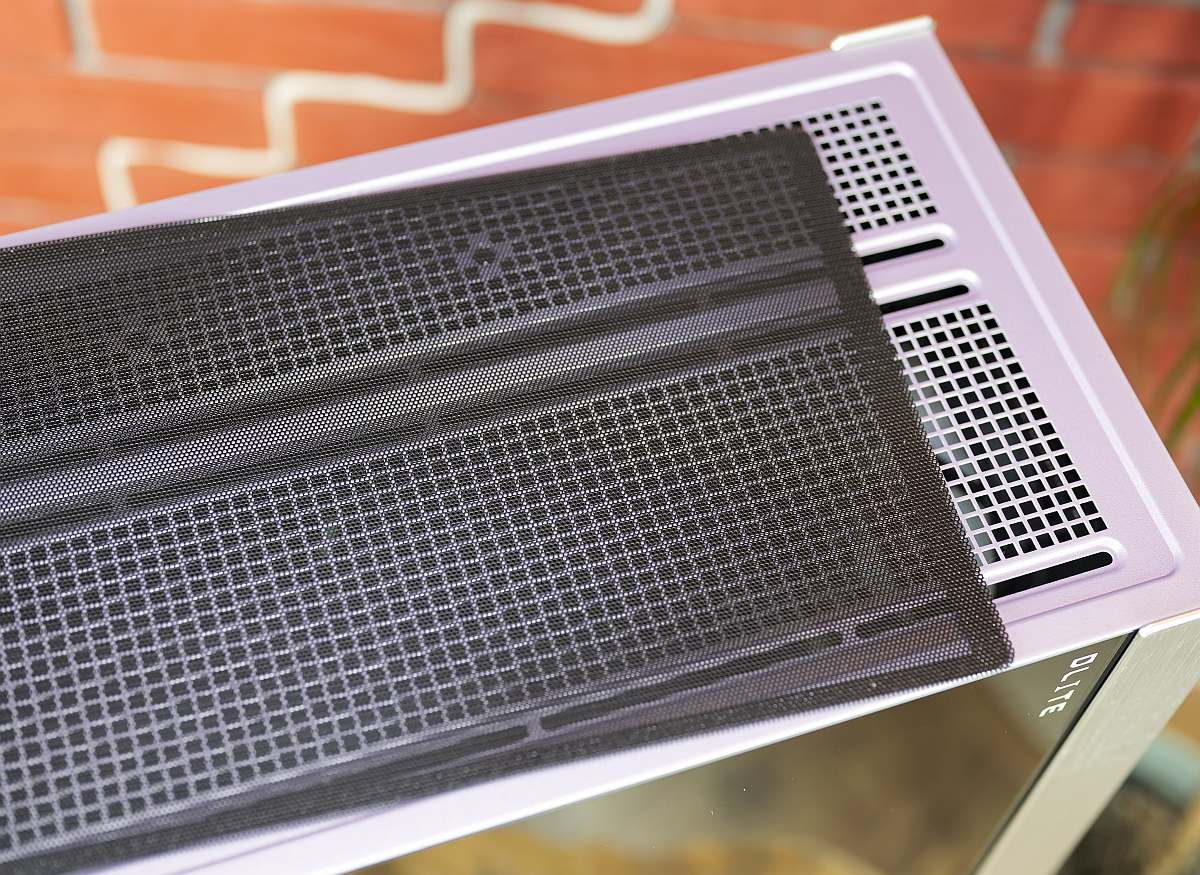

At the top of the chassis you’ll find a large magnetic dust filter encompassing the offset mounting rails.

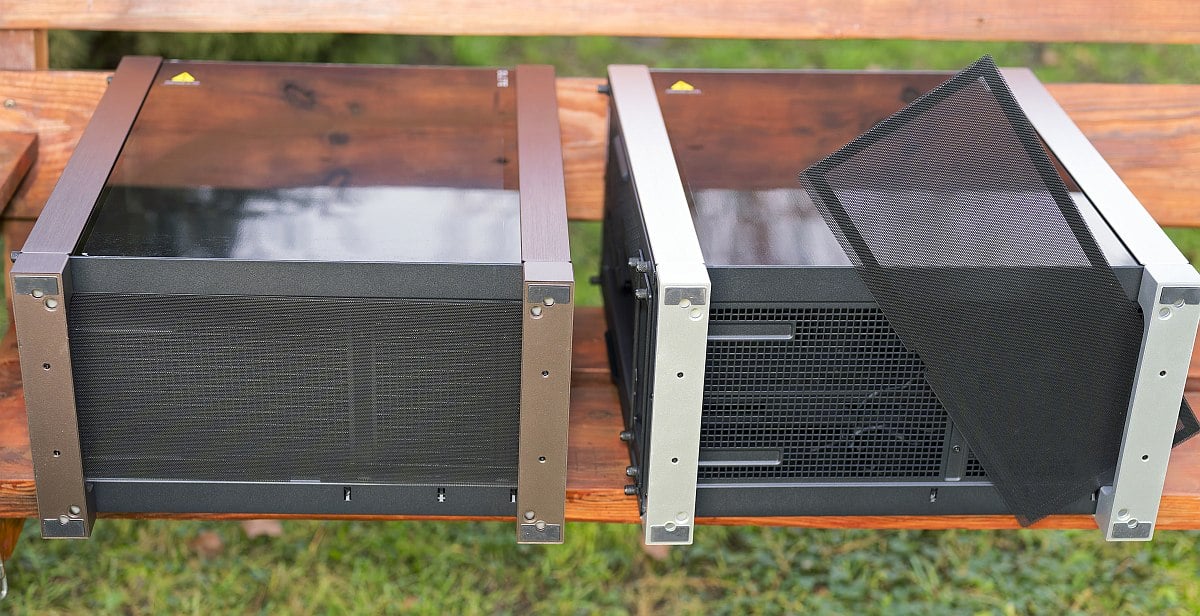

Rubberised feet help absorb vibrations and keep the rig stable, but I’m not a fan of their aesthetic. Rather than blending with the case’s otherwise elegant lines, they appear tacked on, and simpler rubber standoffs might have been a better choice. There’s also an easily removable filter at the bottom for no-fuss maintenance, and DLITE’s overall footprint is compact yet practical for a mid-tower build.

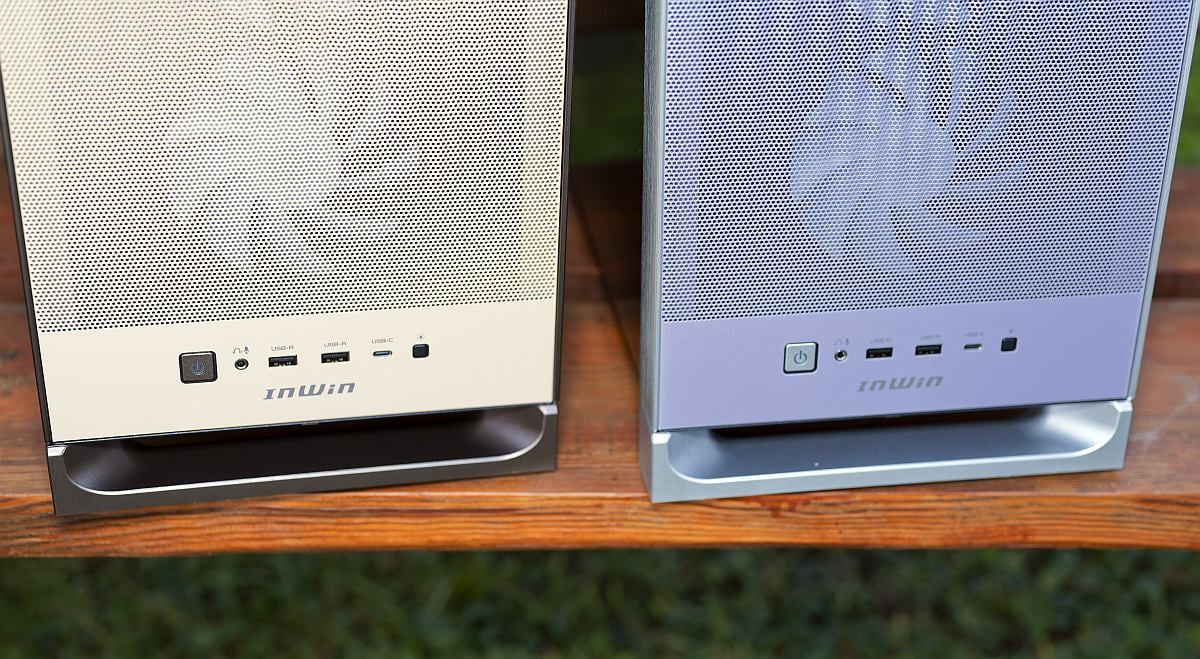

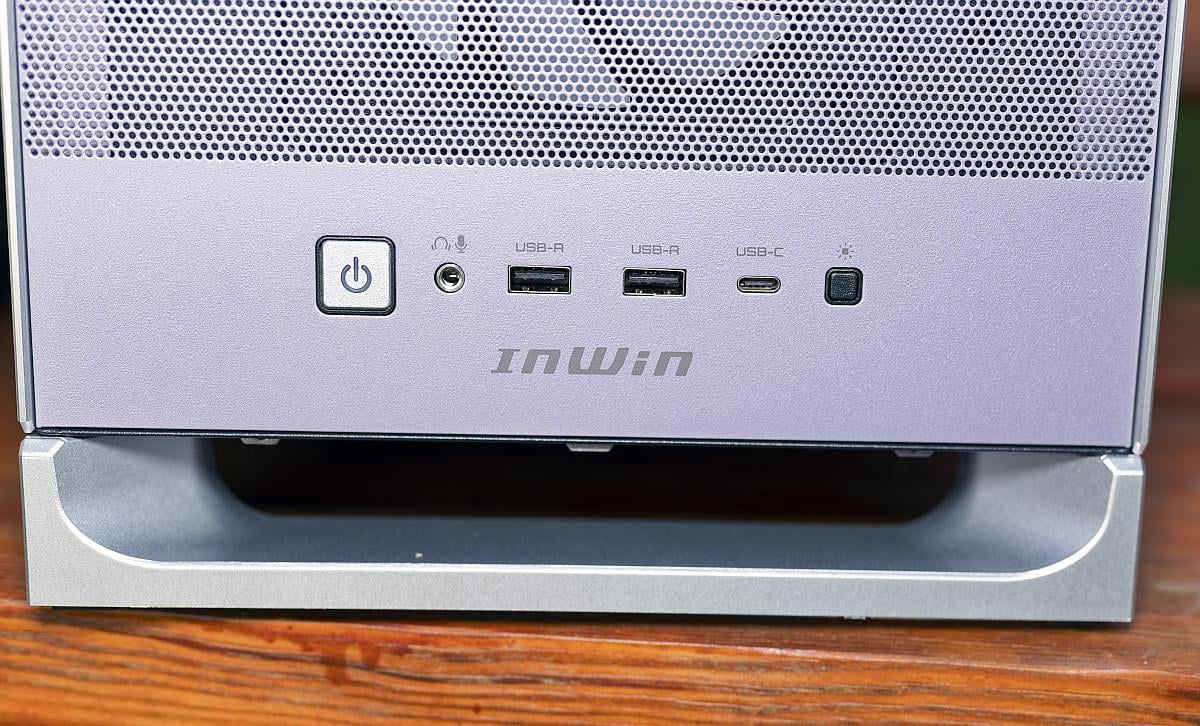

The I/O panel at the bottom front lends itself to on-desk positioning, and includes a power switch, a USB 3.2 Gen2x2 Type-C port, two USB 3.2 Gen1 ports, combination audio jack, plus integrated LED lighting controls.

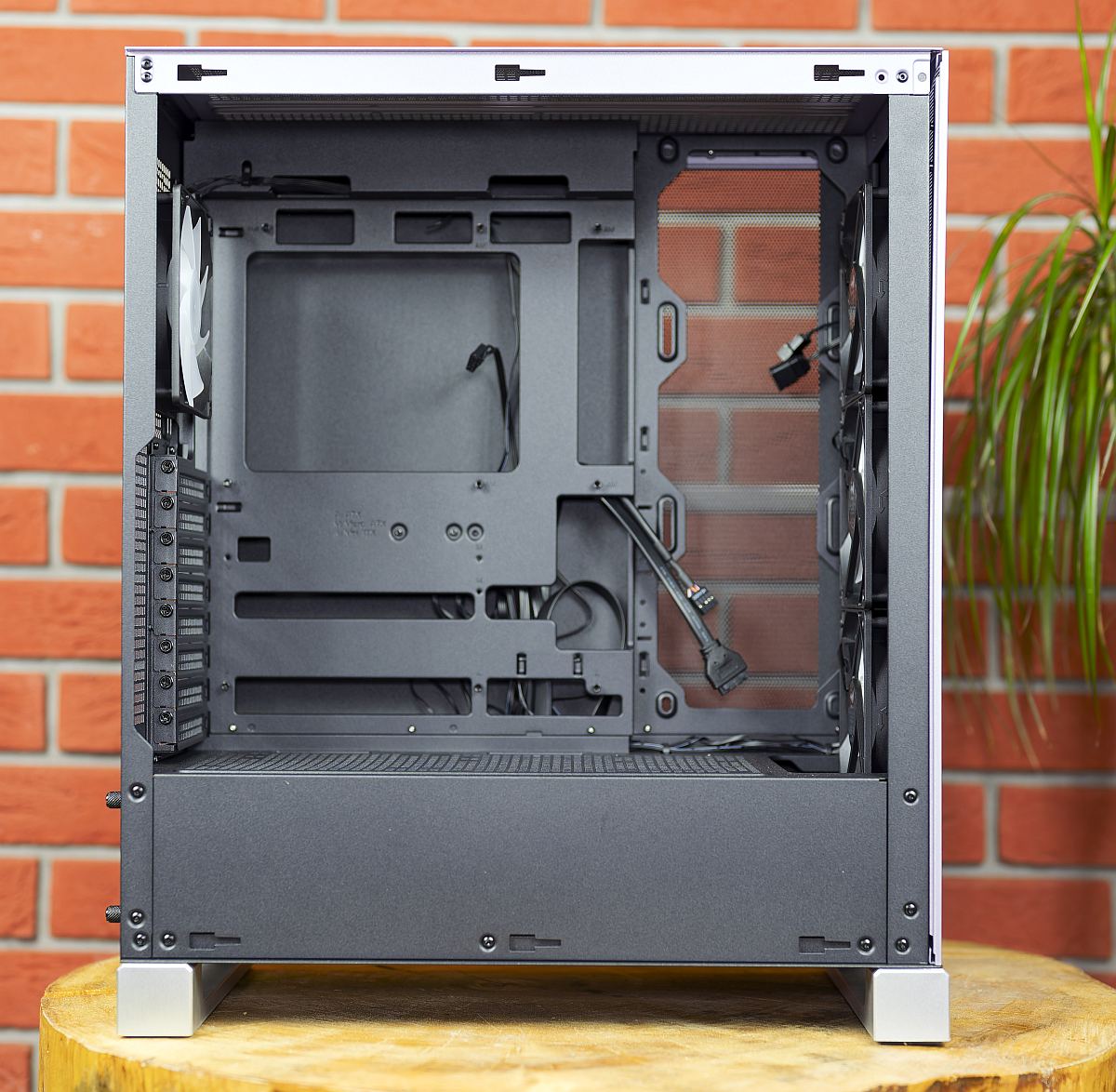

Interior Inspection

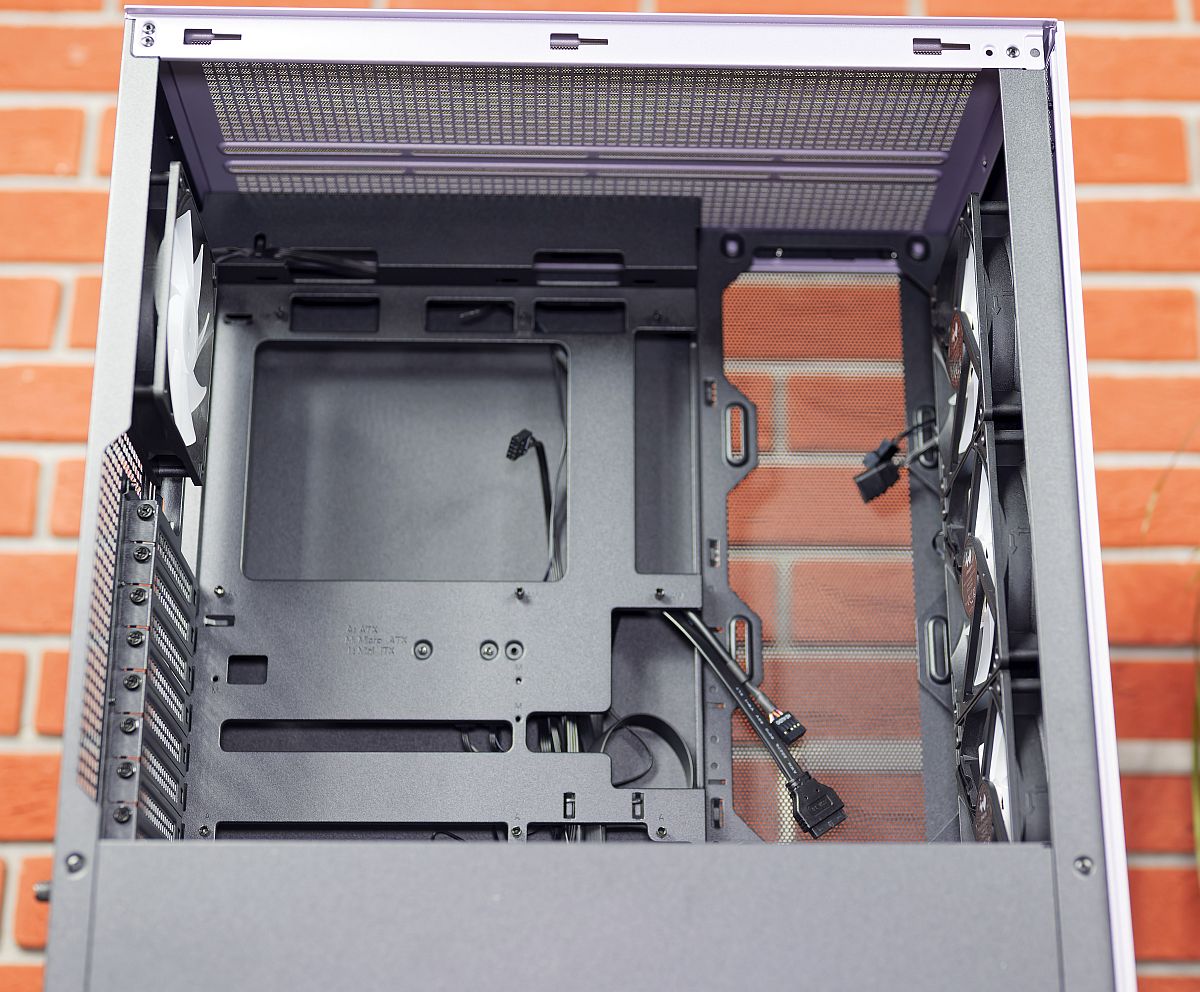

CPU coolers can stand up to 165mm tall, so while there’s generally good clearance, with top-end components you’ll want to measure once, measure twice, and then make it fit. There’s also decent space for thick radiators (up to 360mm front/top), but despite BTF compatibility, there are no rubber grommets for tidy cable threading and also no tool-free thumbscrews for the expansion slots, just regular screws.

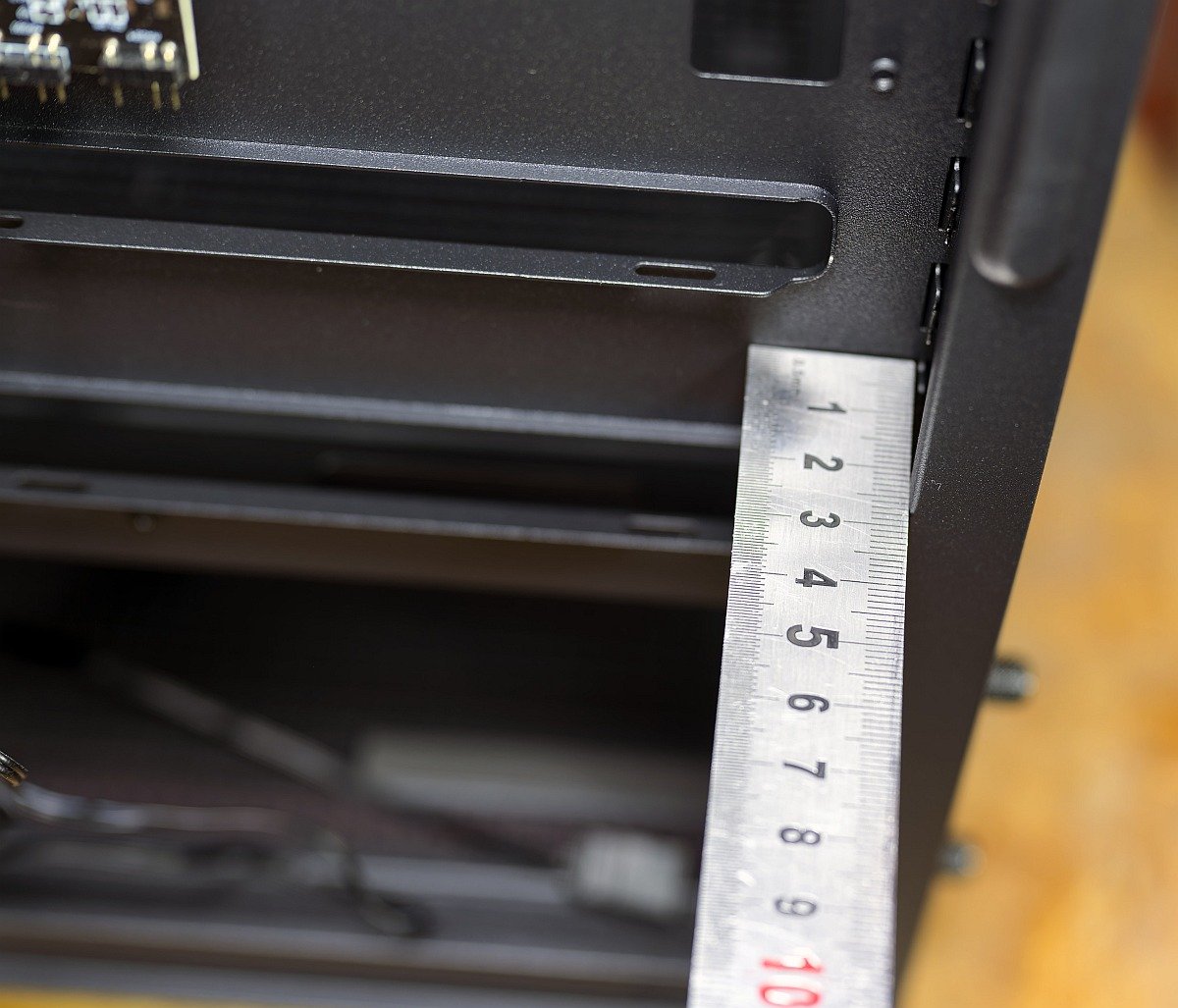

At the front you have a hair under 70mm for your fan/radiator assembly.

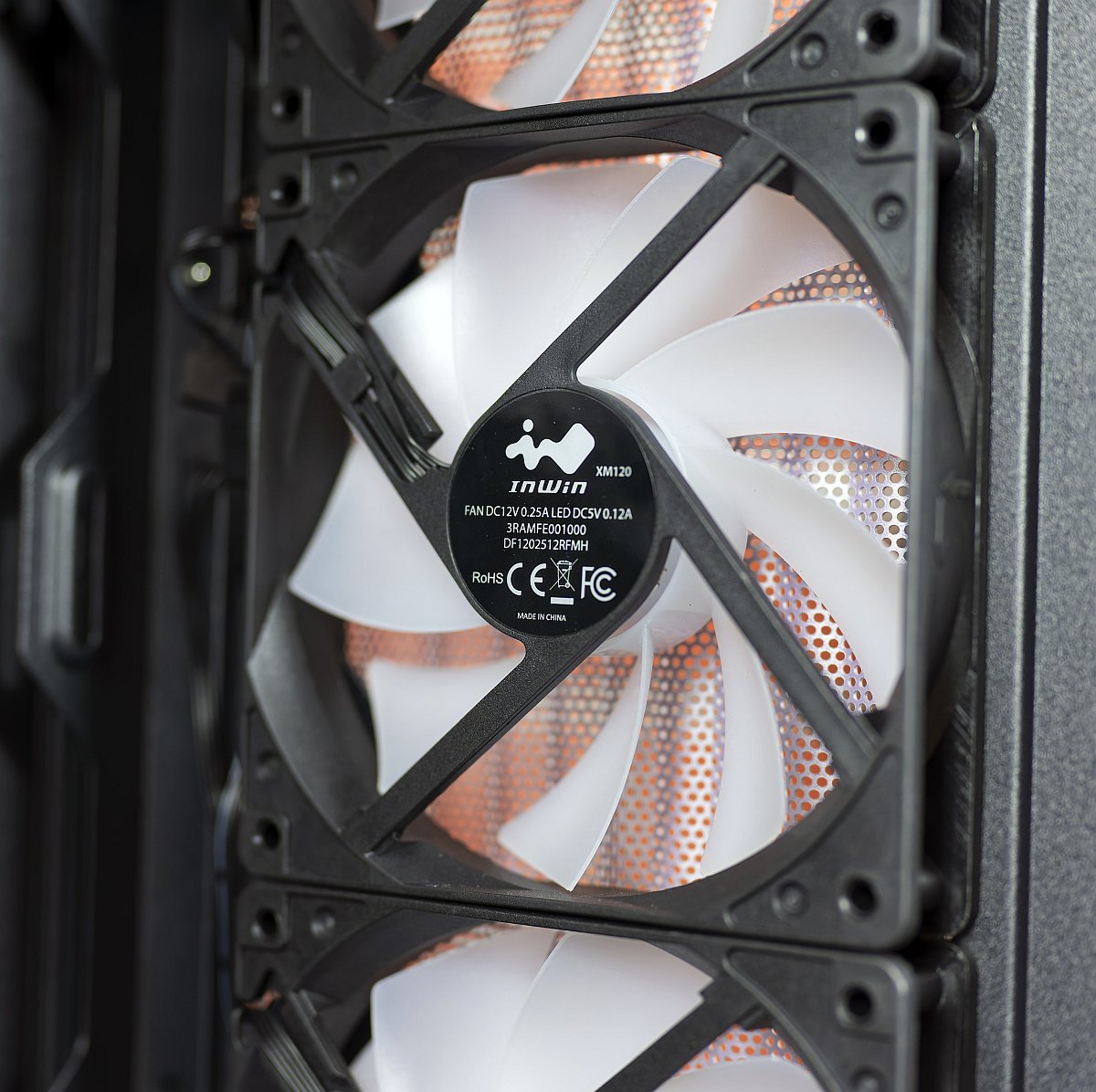

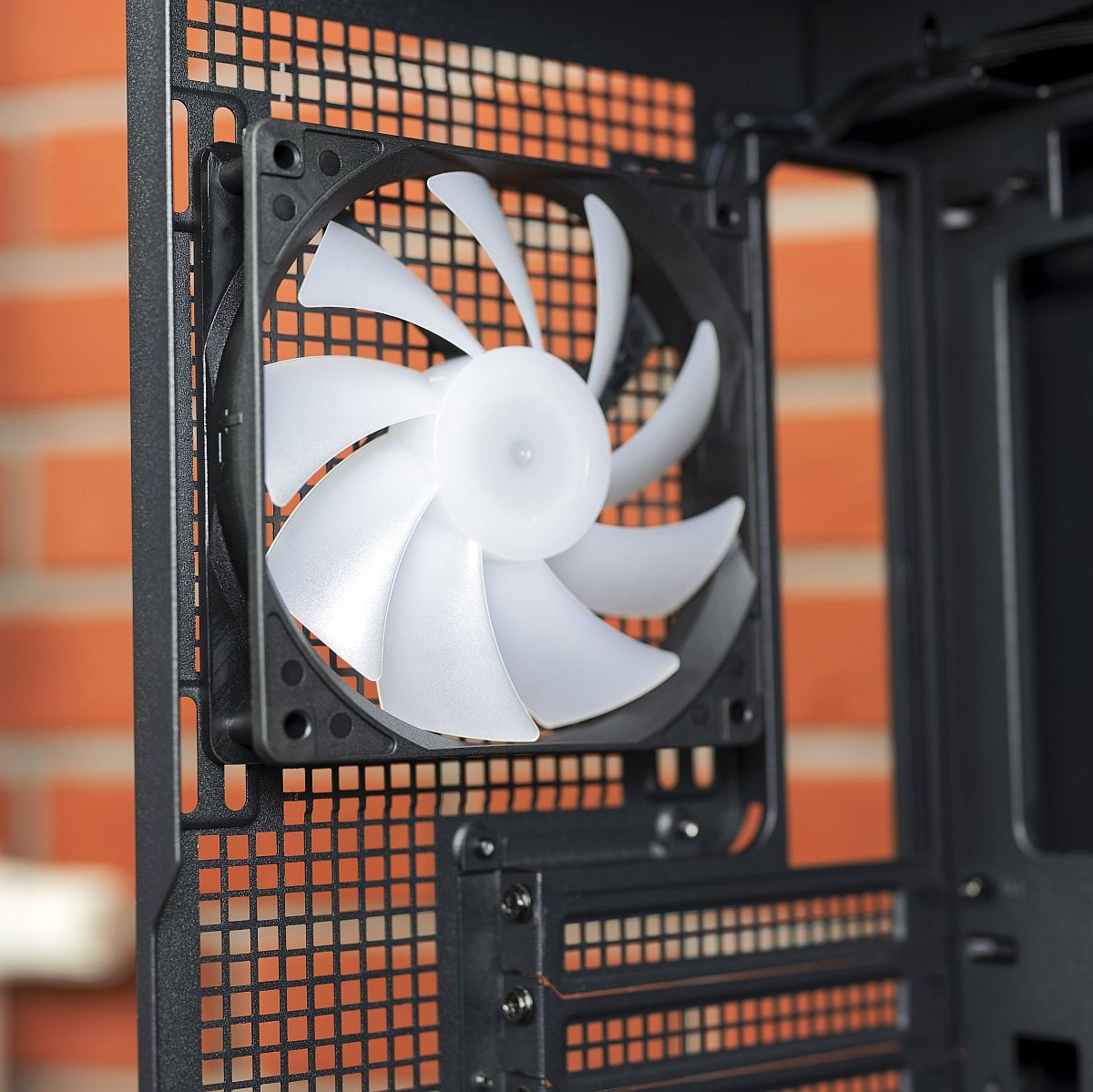

Four InWin XM120 fans come pre-installed (three front, one rear), which simplifies cooling setup. The PWM speed is between 850 and 1500 RPM. Airflow is 63.83 CFM, and the air pressure is 1.29mm H2O. The noise level stated by InWin is 30.7 dBA and an included ARGB hub simplifies connections to help minimise clutter. Mounts for a total of 10 fans provide ample airflow upgradability, and there’s also scope for a vertical graphics card mount, though this does require a riser cable bracket (sold separately).

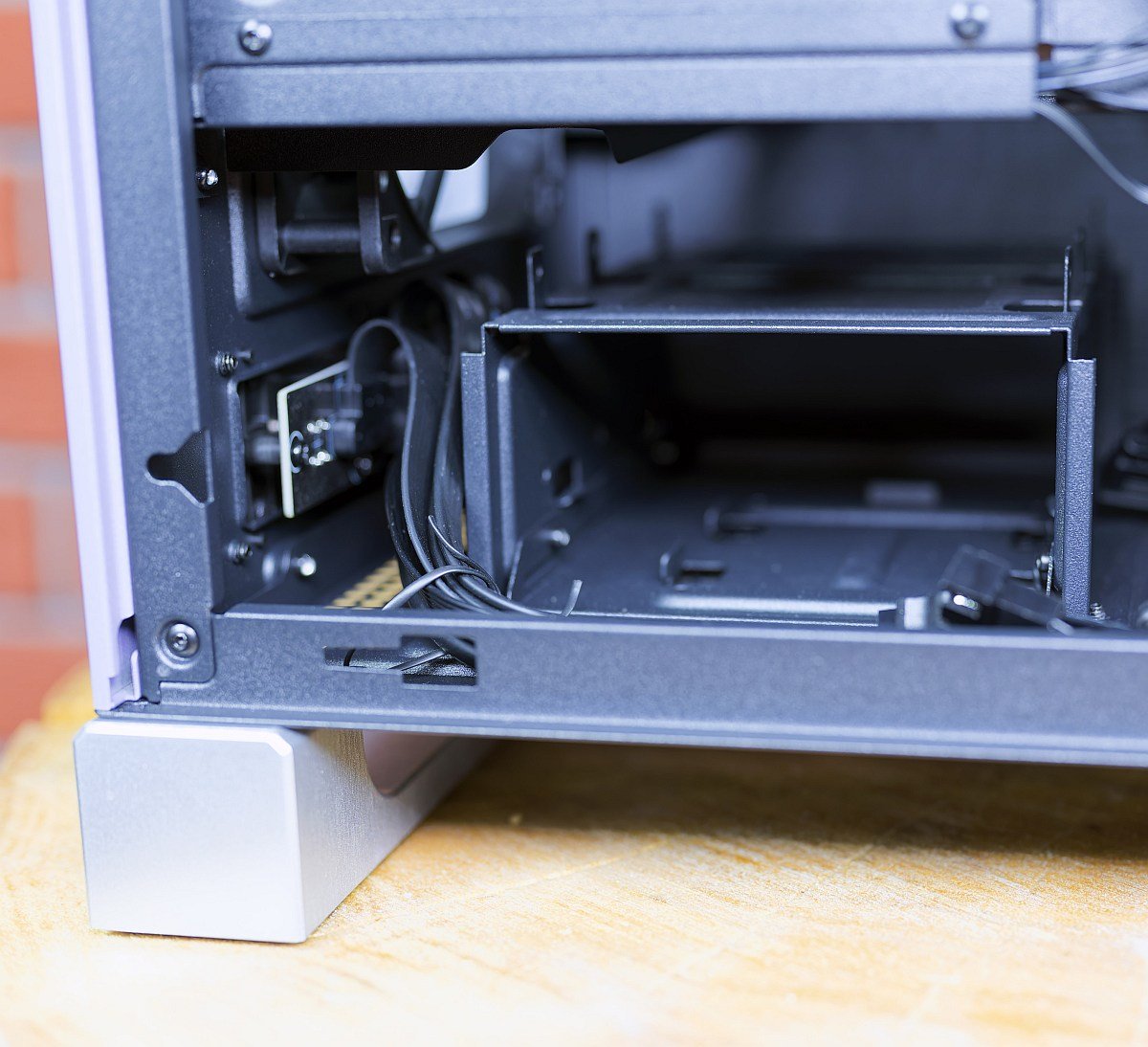

Storage is managed by pairs of 2.5-inch SSD and 3.5-inch HDD slots, allowing expansion without overcrowding the main airflow chamber. However, the ability of today’s motherboards to house multiple M.2 slots somewhat negates chassis-mounted expansion.

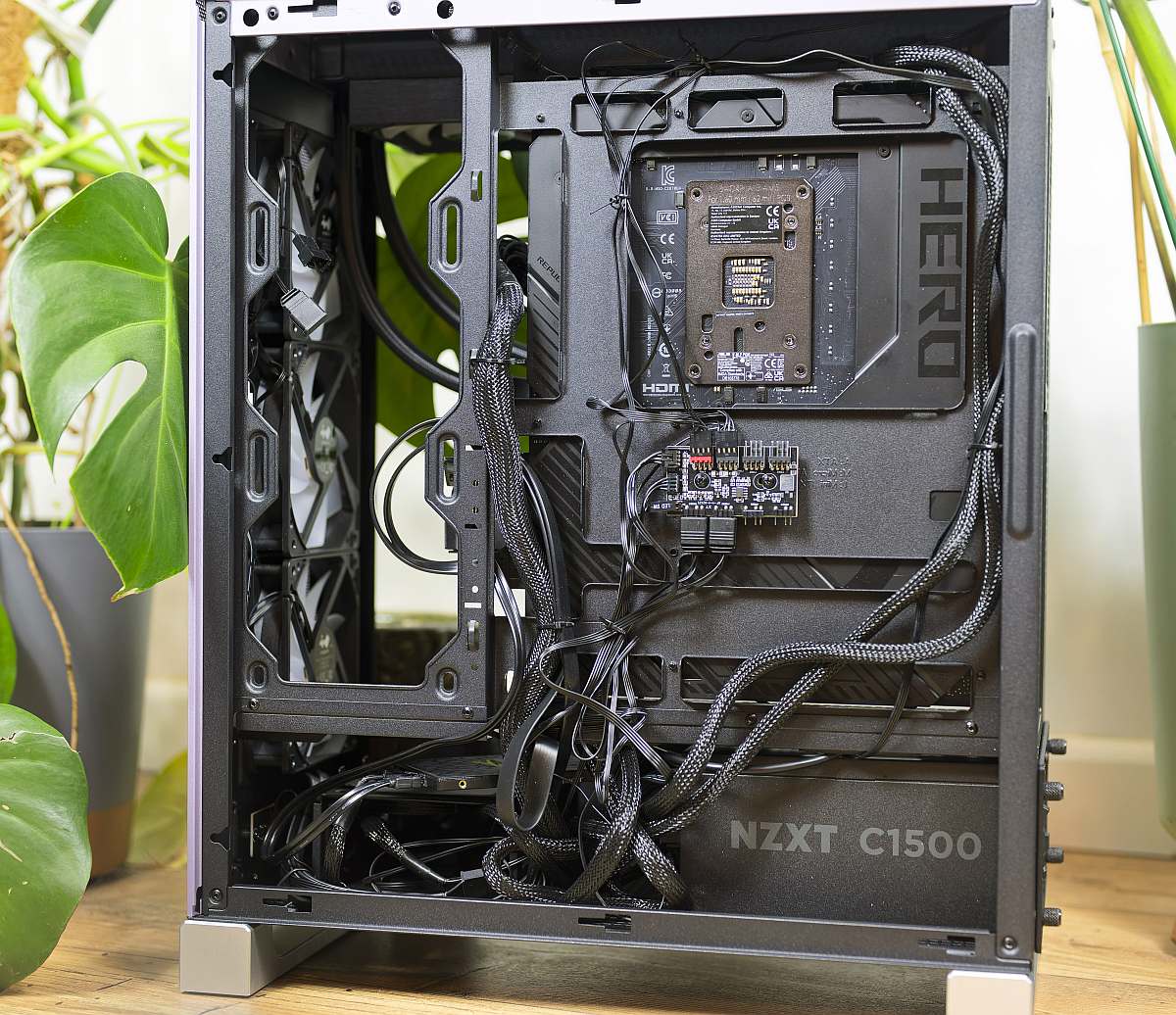

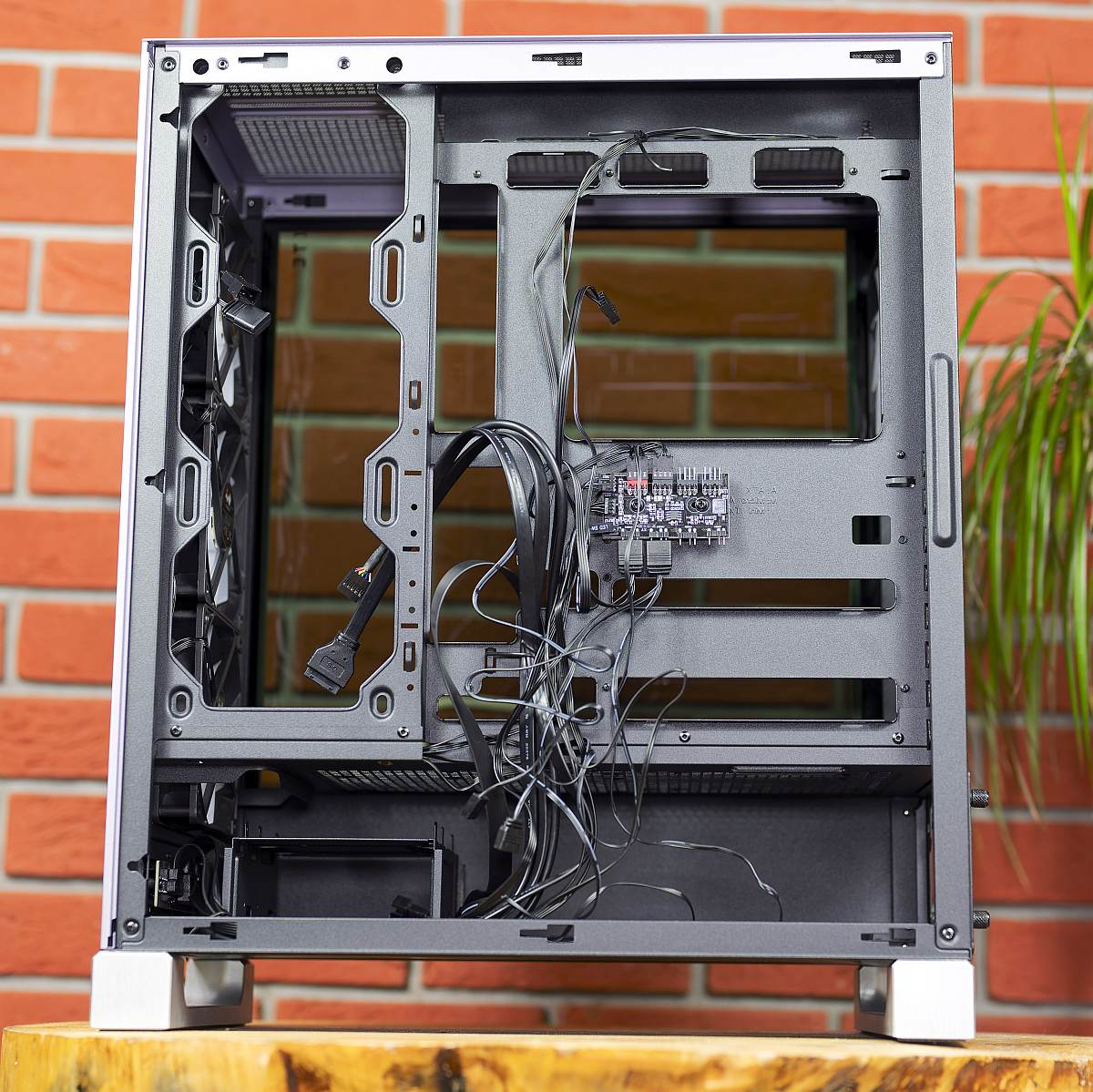

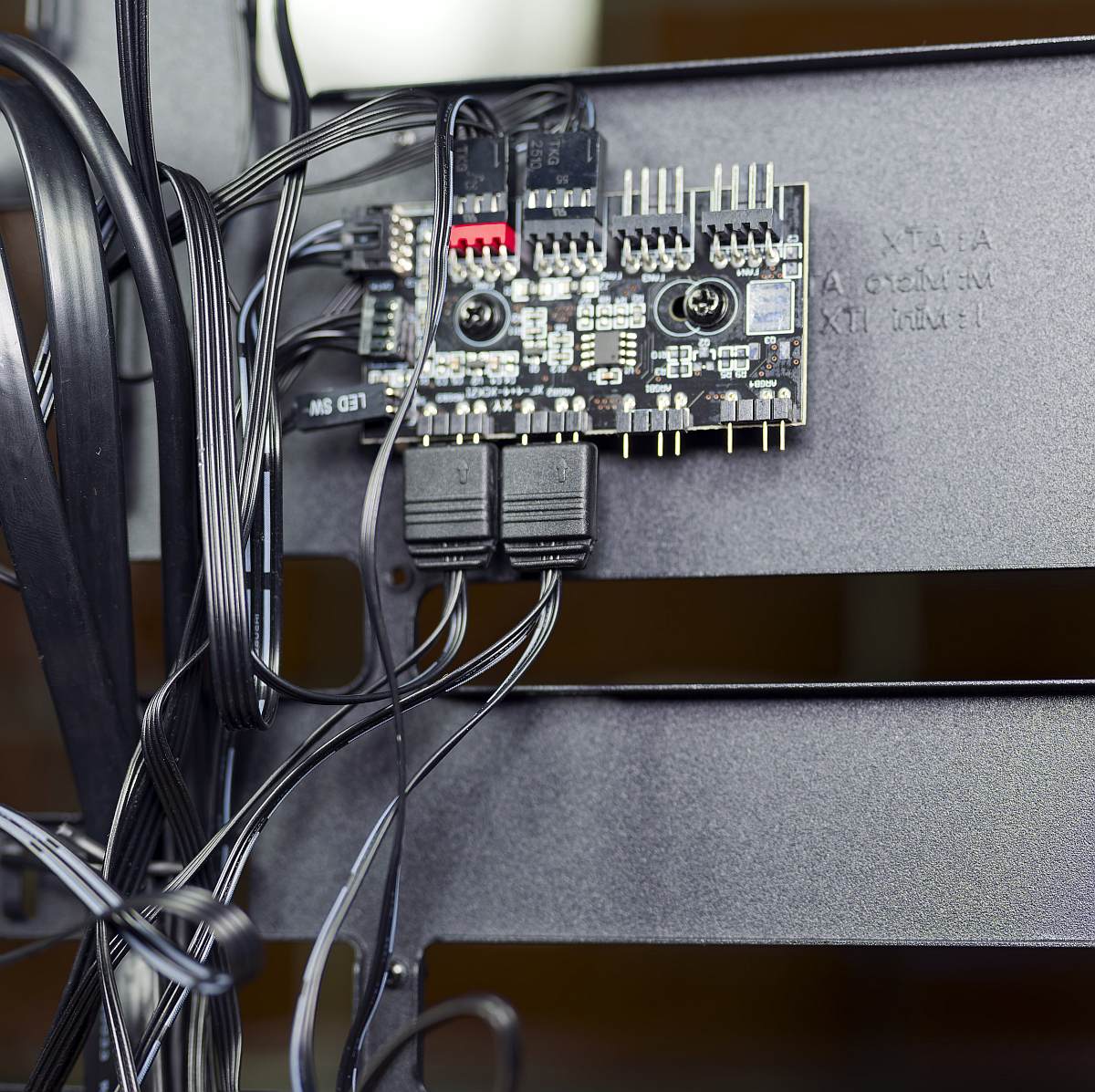

Cable routing cutouts are large and well placed, and despite the absence of rubber grommets and Velcro ties, there’s decent clearance. behind the motherboard tray to keep clutter hidden from view. Do note the included four-way fan/ARGB hub only provides enough connectors for the pre-installed fans, which in fairness ought to be enough for most users.
Building with InWin DLITE
Here’s the list of parts used for a sample build:
• CPU: AMD Ryzen 9 9950X3D
• CPU cooler: Thermaltake LA360-S ARGB
• RAM: Lexar ARES RGB 2 x 16GB 6,000MHz CL28
• Motherboard: Asus ROG Crosshair X870E Hero
• GPU: Asus TUF Gaming GeForce RTX 3080
• SSD: Lexar NQ790 2TB
• PSU: NZXT C1500 Platinum

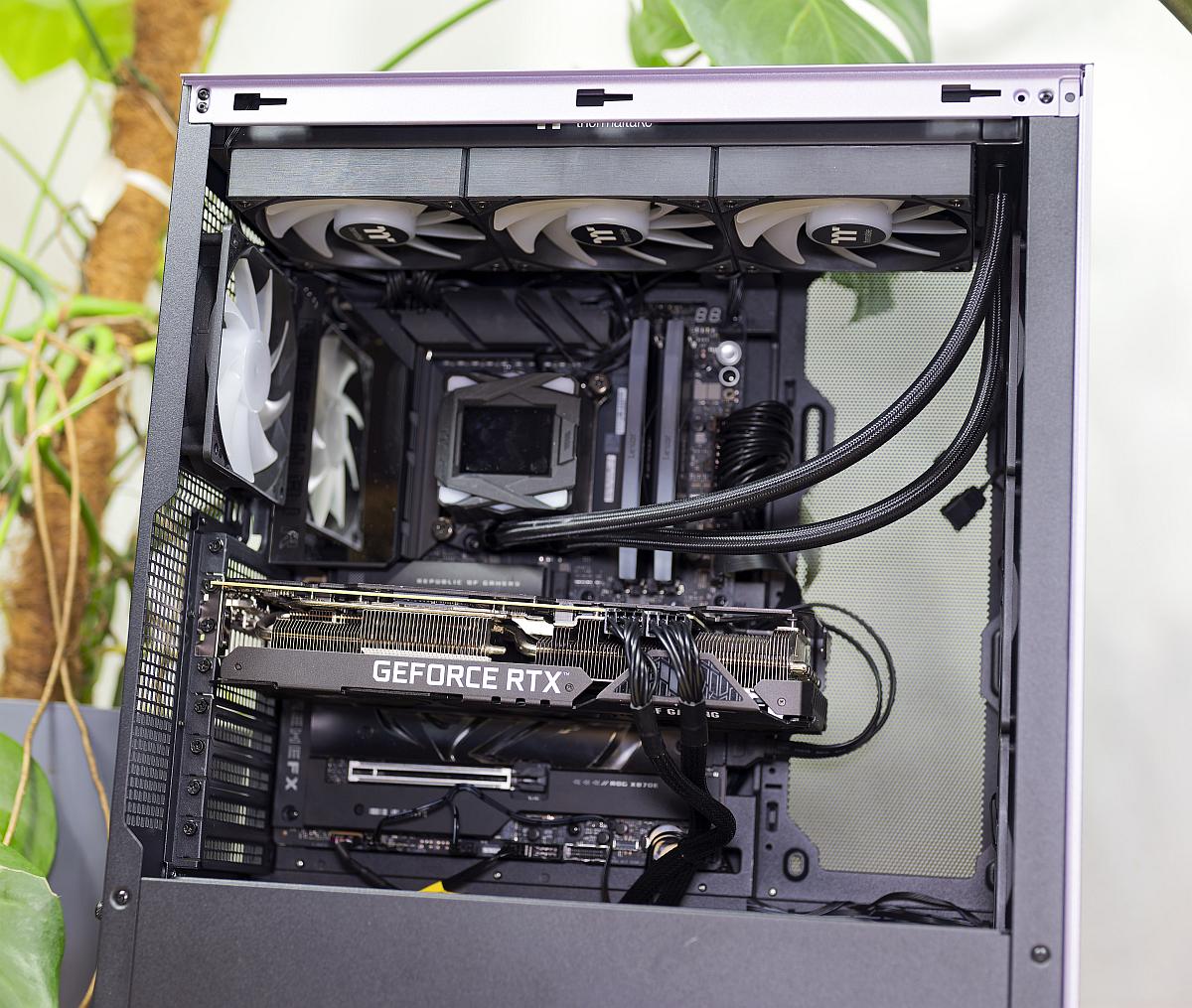

Assembly in DLITE is mostly smooth, thanks to the spacious layout and intuitive mounting systems. Component clearance is ample for ATX builds.
GPU clearance is generous, and though the 380mm max length requires checking for some of the very largest cards, my RTX 3080 poses no challenge.

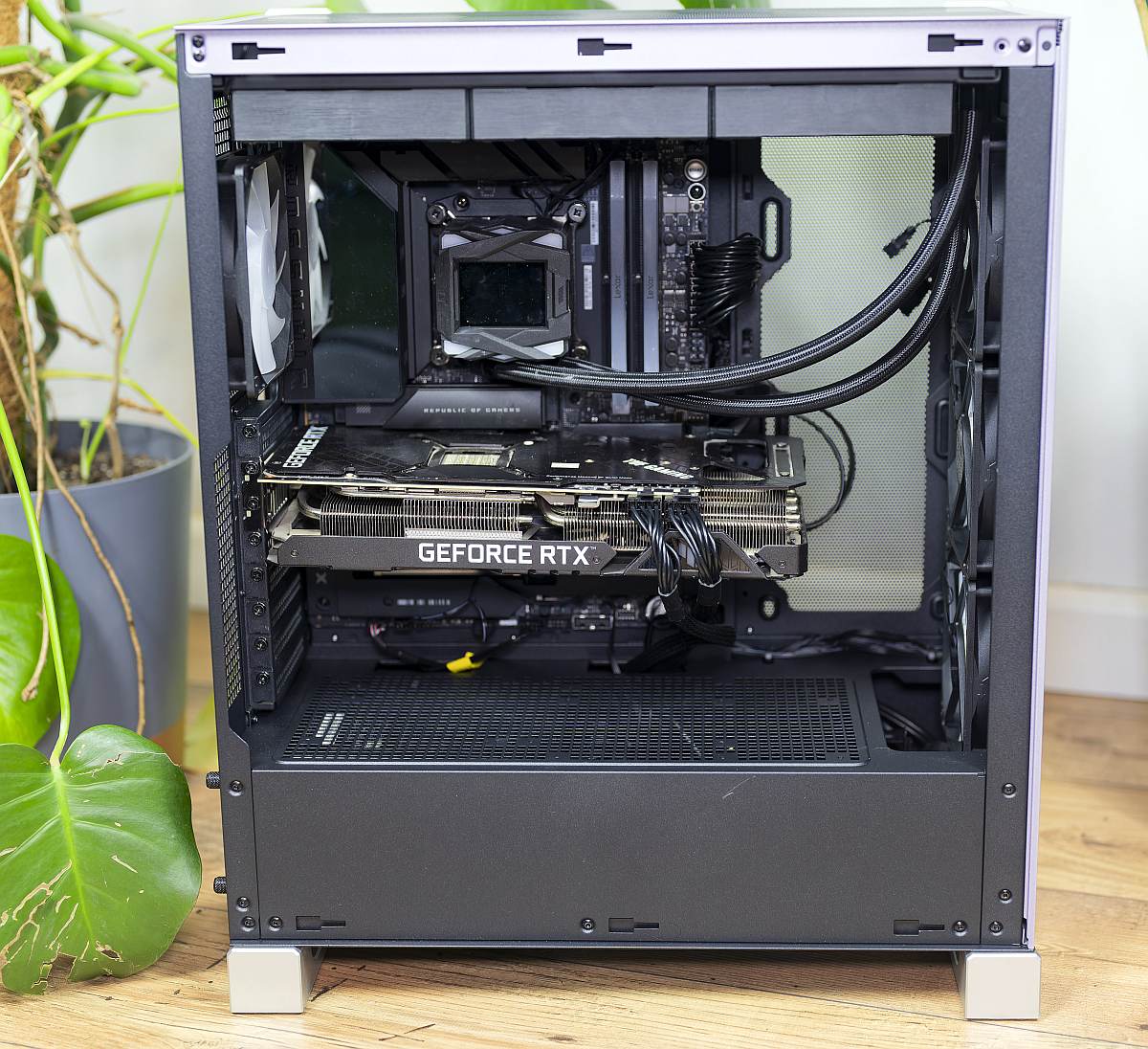

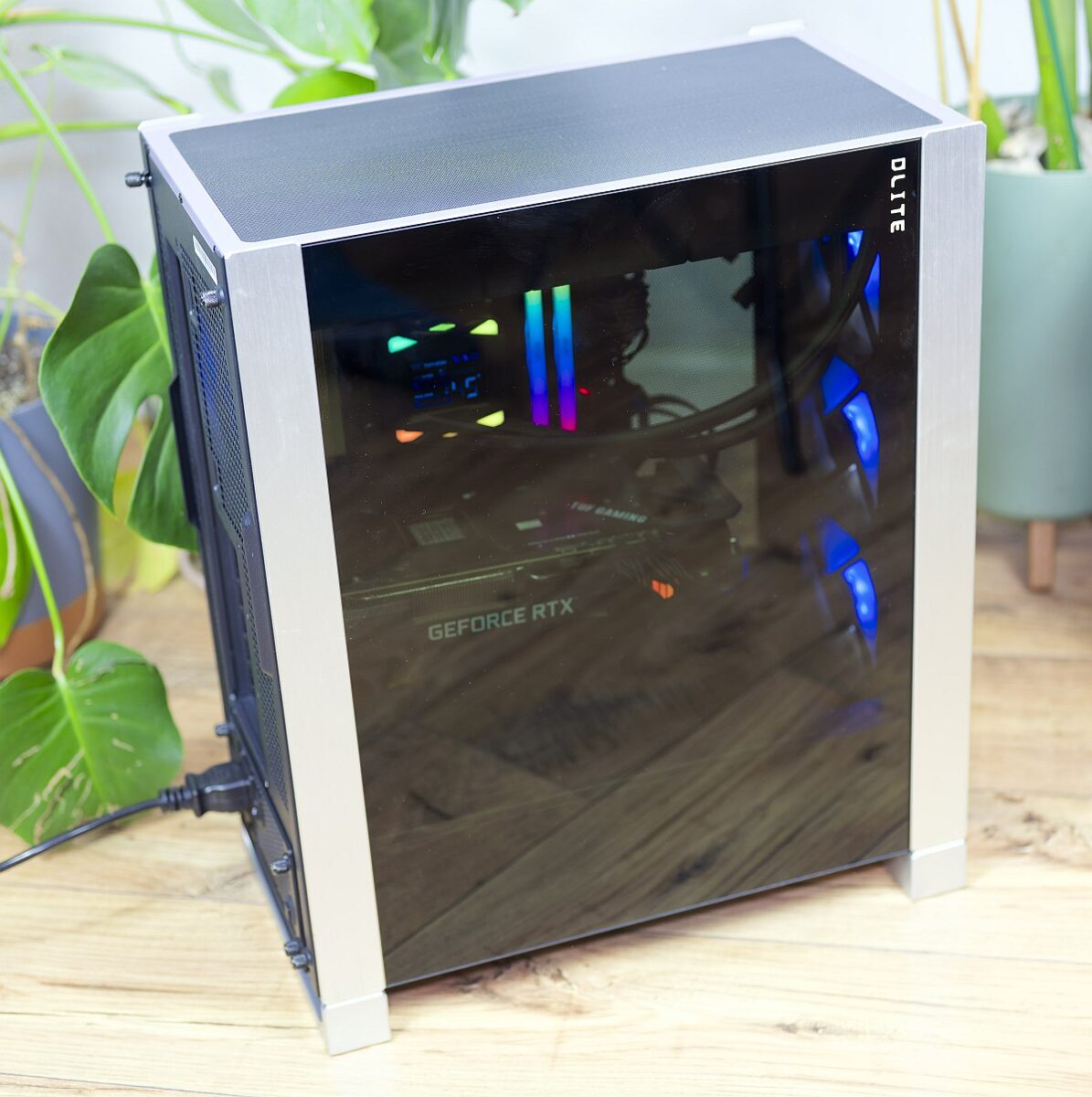

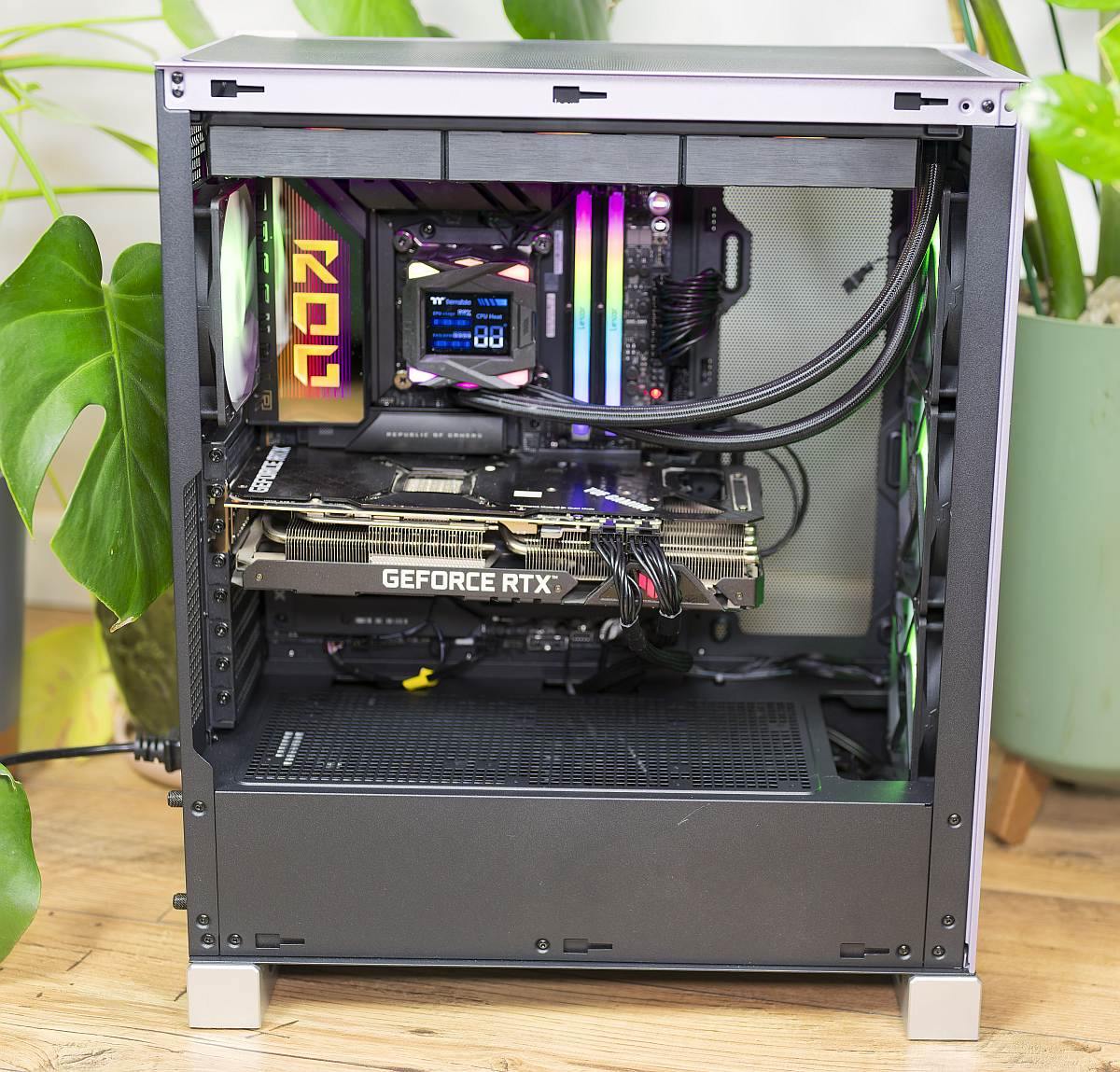

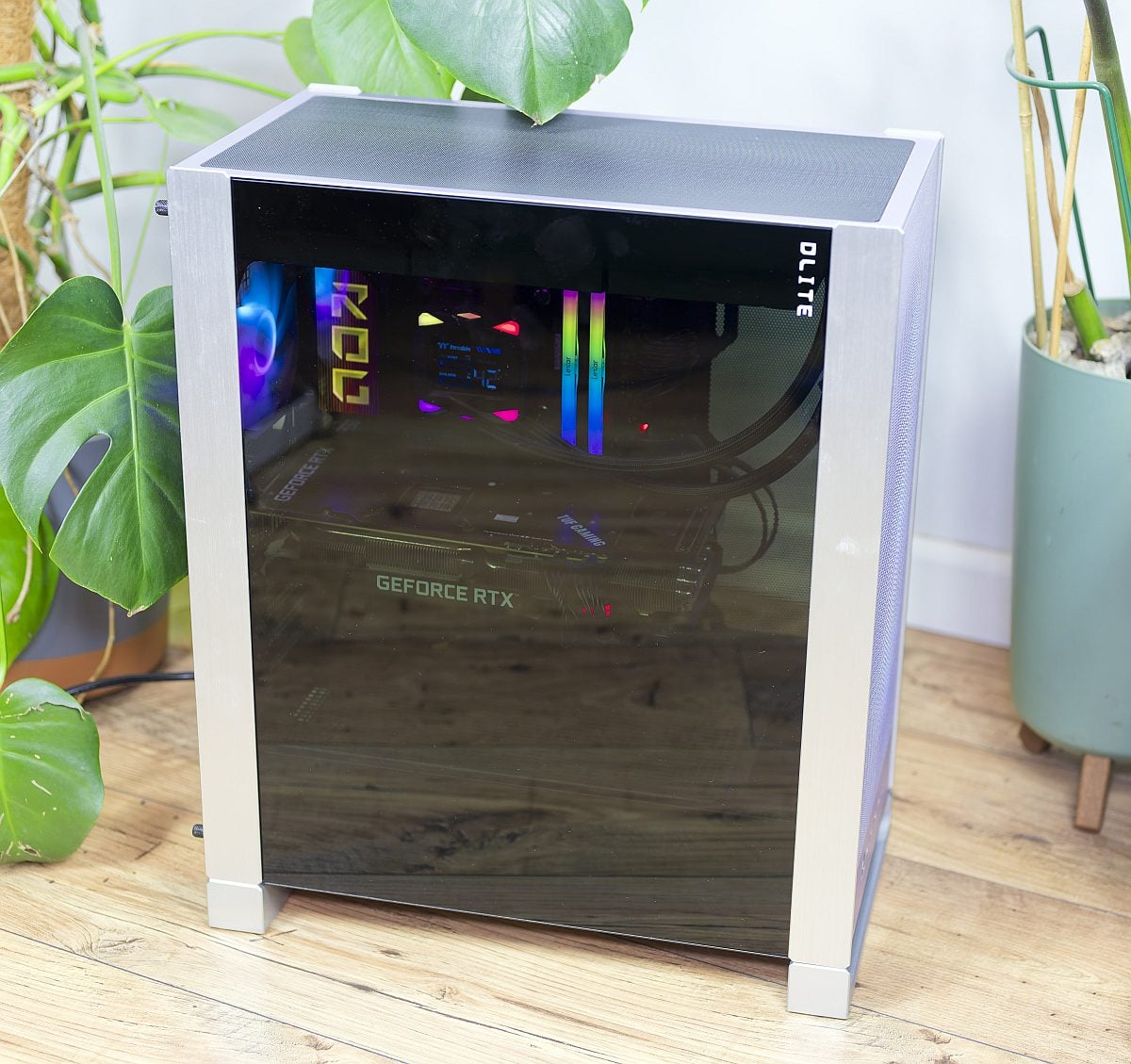

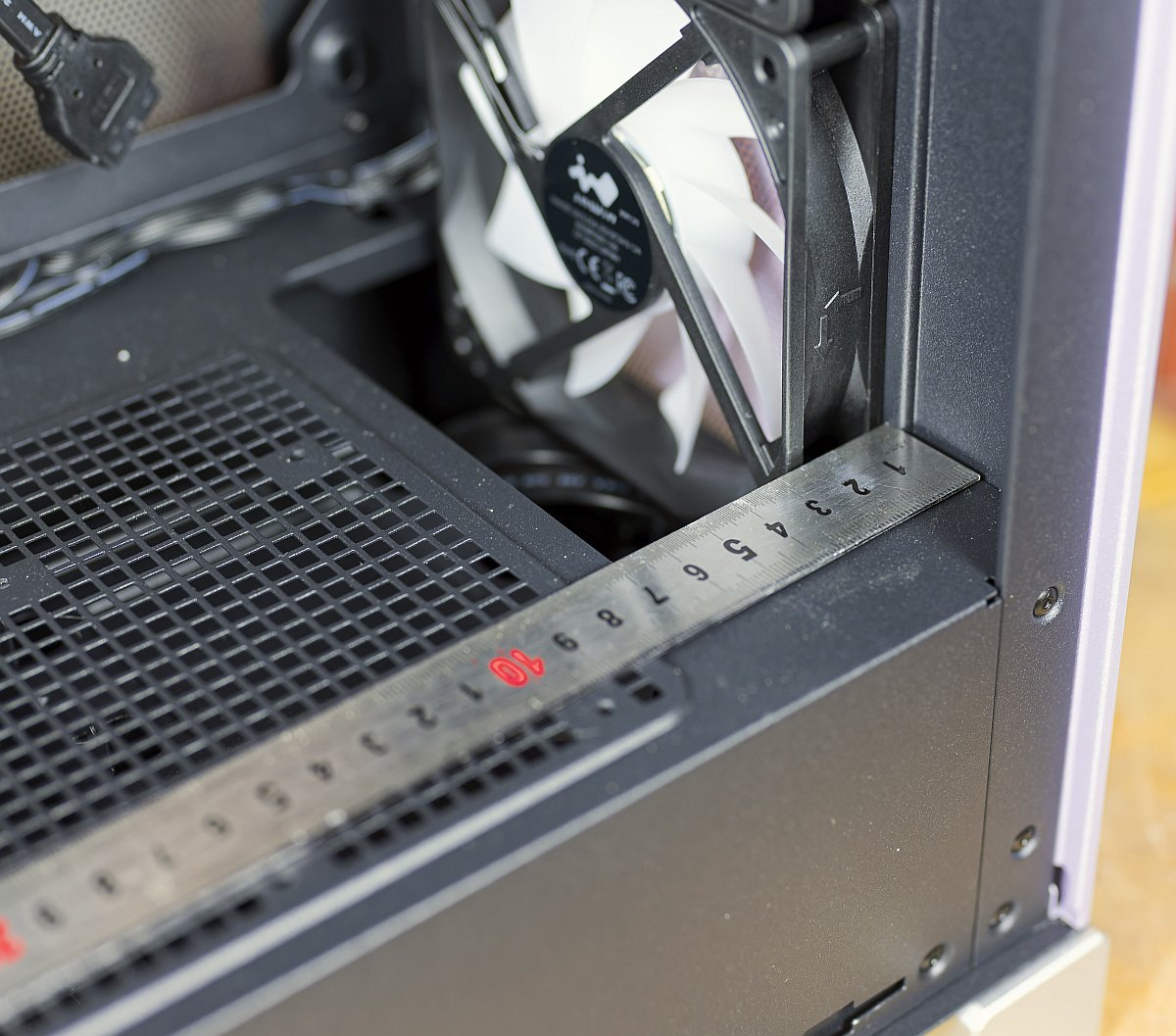

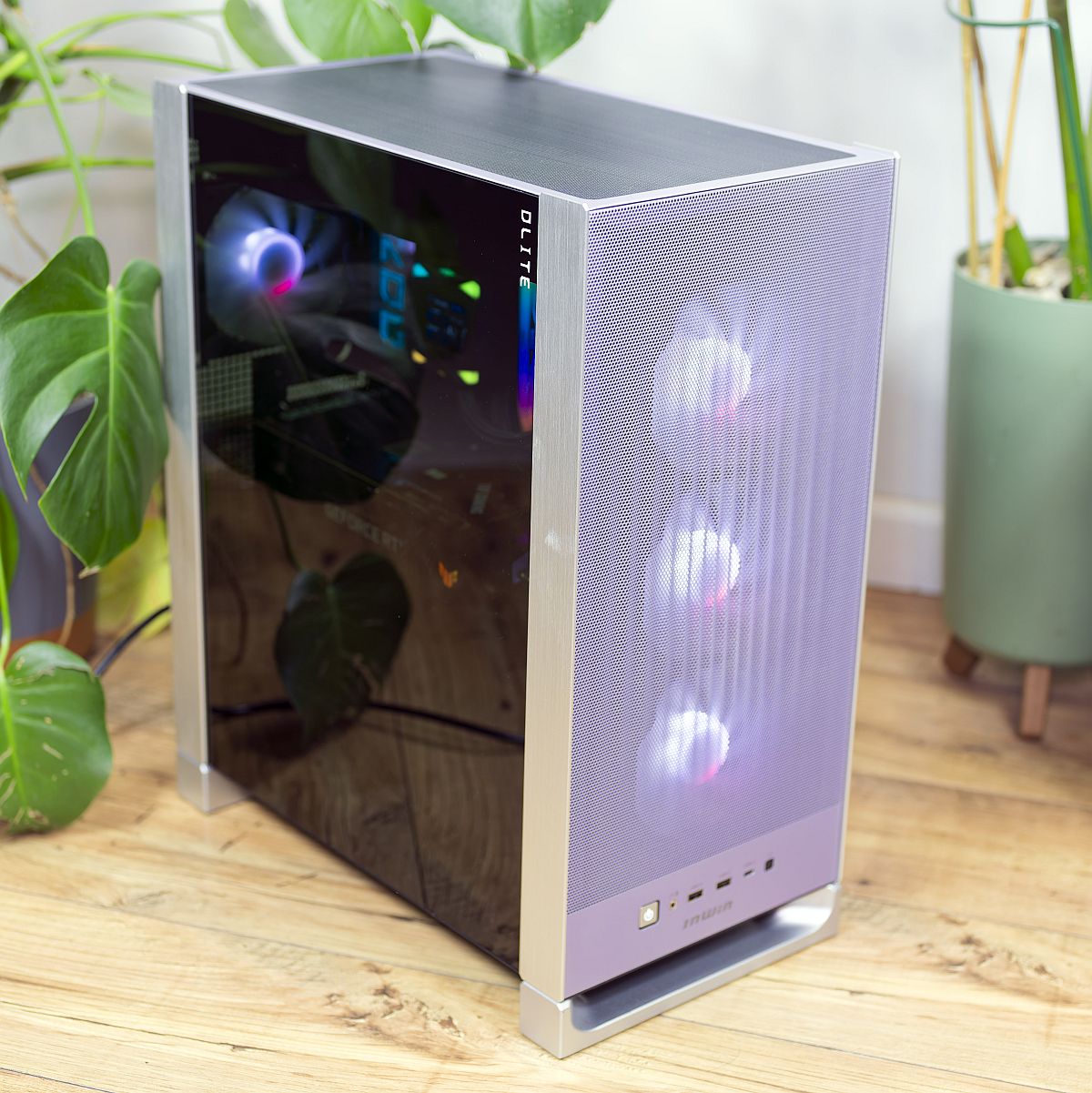

Though the PSU compartment officially supports a 200mm unit, I’d urge caution as the area is a whole lot more comfortable with 160–180mm units, especially with heavy cable loads. Cable management is smoother than average, though I do miss having rubber grommets in routing holes on any case priced over €100. On the other hand, with four fans as standard, the included fan hub is a welcome inclusion, easing wiring and lighting control. You can see the finished build below, and it looks pretty elegant, I must admit.
Performance
Careful installation ensures DLITE delivers not just visual flair but also reliable cooling. Up to 10 fans and robust mesh intake help move air freely, and the pre-installed fans deliver quiet, effective baseline cooling. Thermal tests with demanding hardware, such as an AMD Ryzen 9 9950X3D and RTX 3080, confirm that system temperatures remain low and noise is minimal when fans run at moderate speeds.
Noise levels remain barely audible up to approximately 30% fan speed. Running them at full pelt, of course, generates significantly more noise, making it suitable only for heavy rendering sessions or gaming with a headset on. Filtration on the bottom, front and top should do a good job of preventing dust accumulation within the case.
Temperature

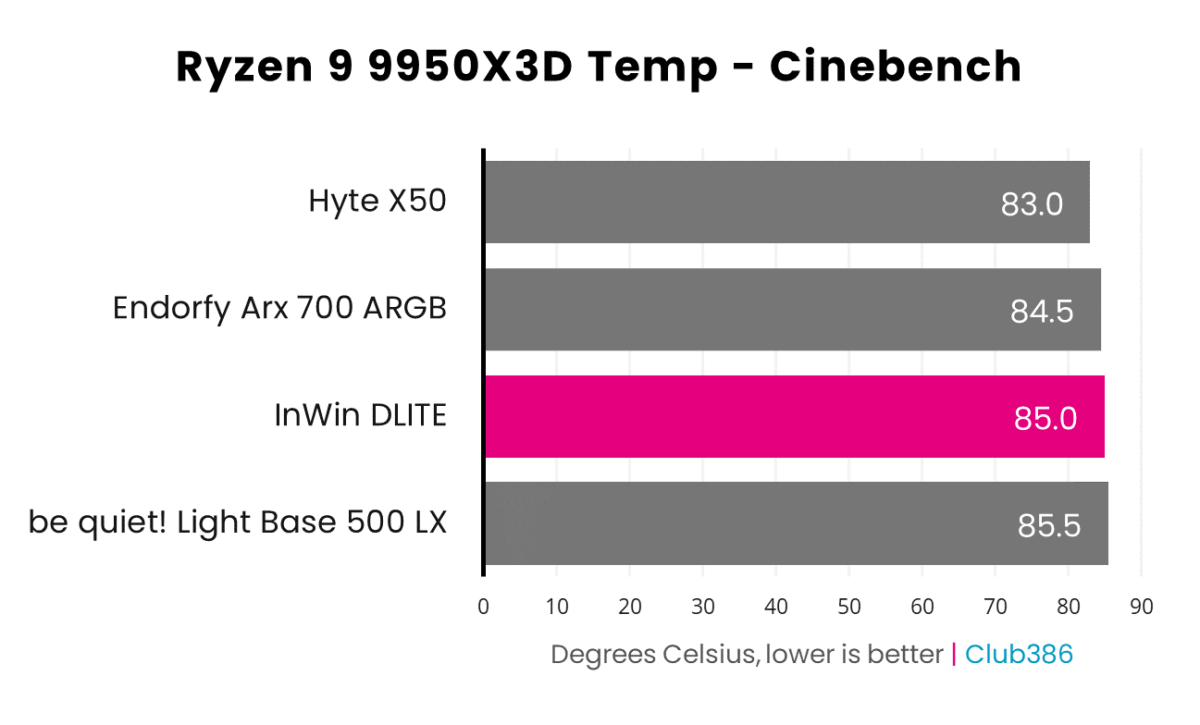

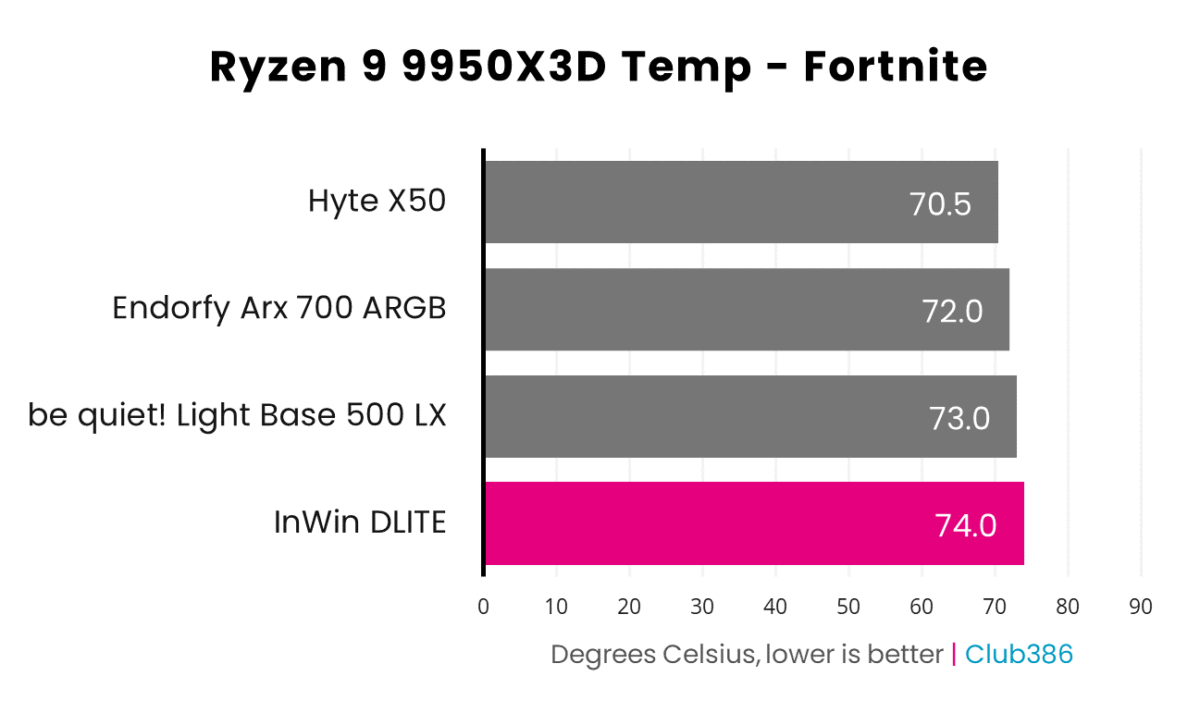

The charts below show InWin DLITE’s thermal performance compared to other cases. Temperatures were recorded in an idle state and with 2D and 3D loads using Cinebench 2024 and Fortnite, respectively.
Thermal performance of the DLITE compares favourably with that of other mid-tower competitors. CPU and GPU temperatures remain in check, aided by the mesh intake and four pre-installed fans. Users seeking even lower GPU temps are encouraged to add fans to the bottom and side positions for enhanced cooling.

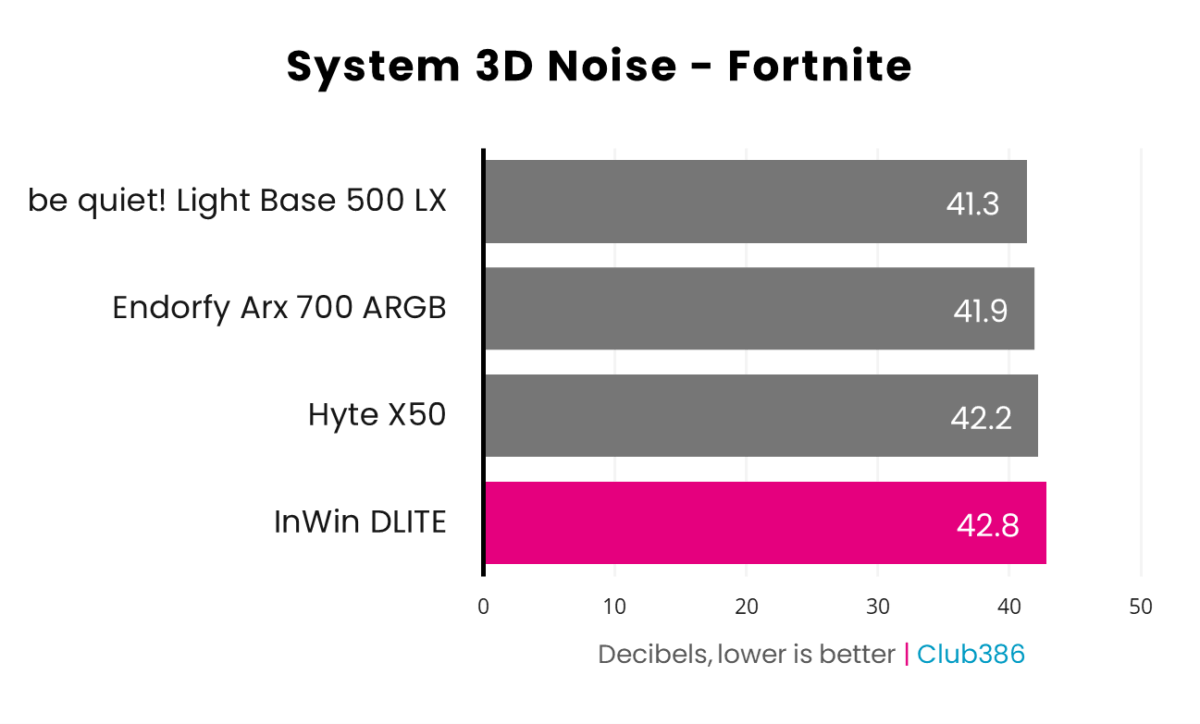

Noise

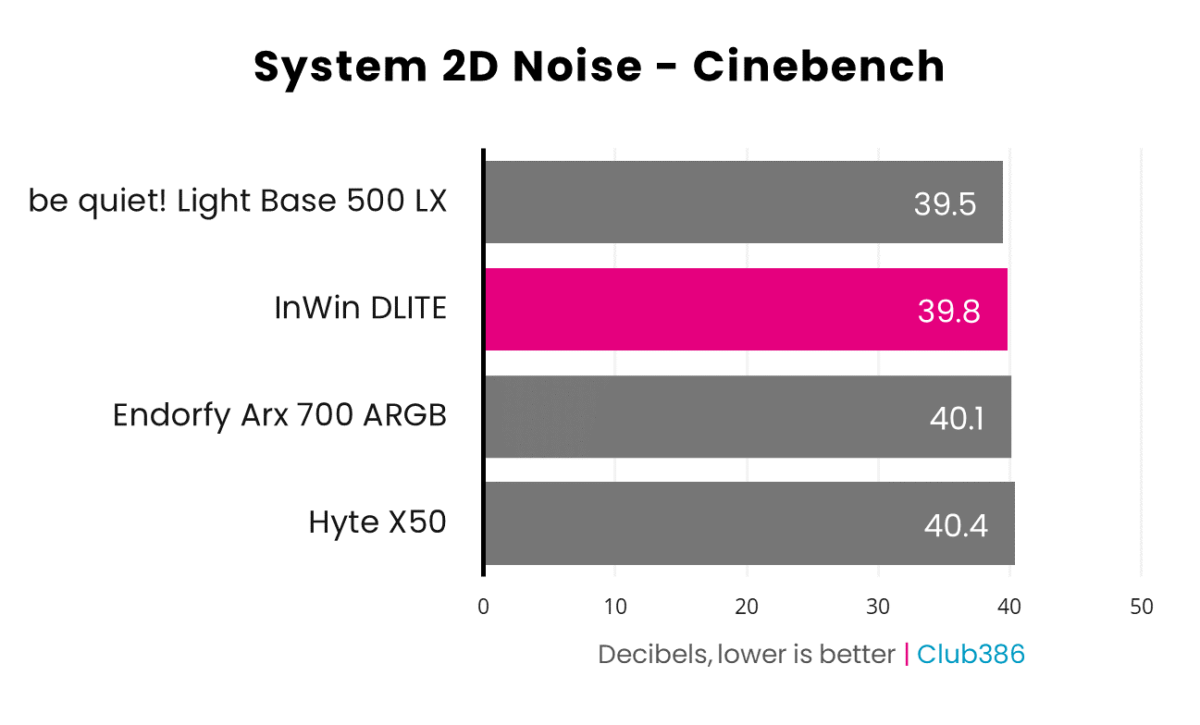

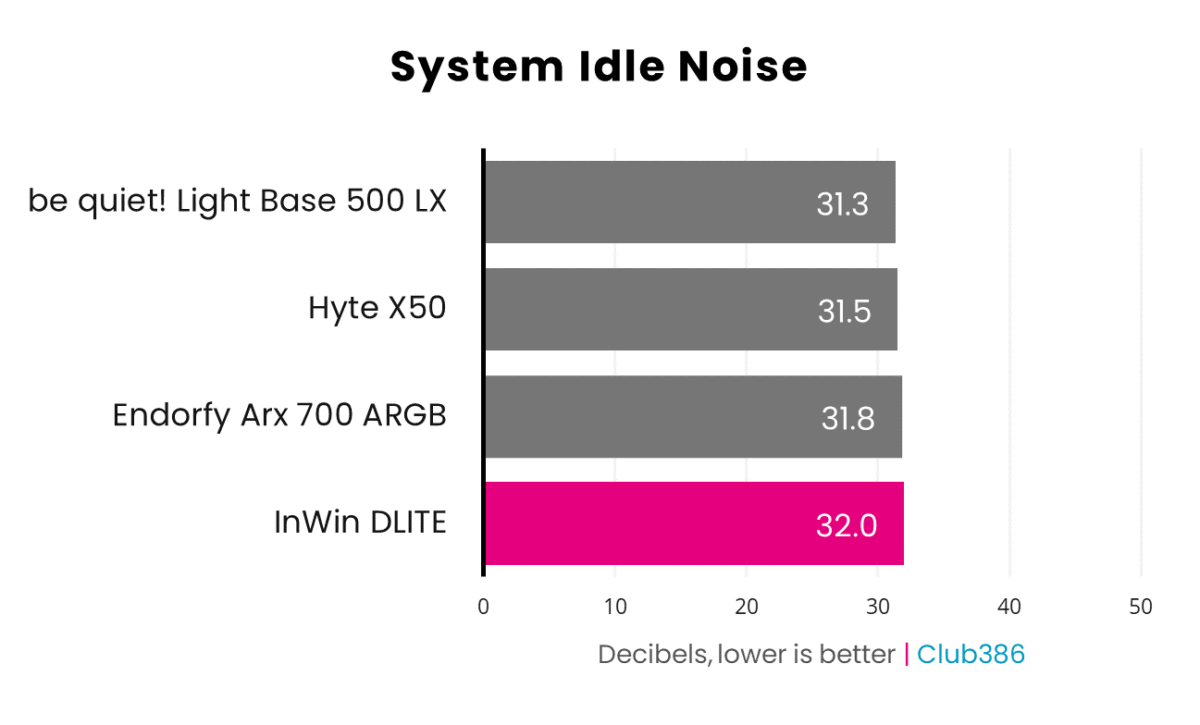

Noise levels were recorded in a completely enclosed room with a set ambient temperature of 22°C. The lowest dBA level I can measure in this room without equipment activated is just under 30dBA. I measure system noise 40cm from the side panel. The automatic fan profile was used for testing.
At idle, the DLITE was rather silent, with noise rising only during intensive gaming or rendering, mostly from the GPU cooling. The case’s solid construction and effective dust filters help keep unwanted resonance at bay.
Conclusion
The InWin DLITE succeeds as a visually refined, modern, mid-tower for PC builders who value elegance and versatile features at an affordable fee. Its blend of brushed aluminium, mesh panels, and support for back-connector motherboards offers a future-proof building experience in a choice of tasteful colours that set it apart from conventional designs.
It’s a solid amount of case for €129, and good value is reflected in four pre-installed ARGB fans and an integrated fan/lighting hub. While the tinted tempered glass limits interior visibility – a curious choice on a case supporting back-connector boards – the included gear provides fine cooling credentials right out of the box.
Downsides include feet that, in my opinion, look like an afterthought, and I do feel as though the GPU would really benefit from a bottom intake. A lack of rubber grommets might frustrate some, just as the regular screws for the expansion slots, however these are minor drawbacks on an otherwise thoughtfully-engineered case.
For those after a relatively compact case with striking looks, bountiful blowers, and versatile mounting options, DLITE offers genuine distinction. Its quality materials and quartet of fans put it ahead of some rivals at the same price point. While not the cheapest, DLITE delivers strong value through careful design and reliable performance, especially for builds prioritising aesthetics.
