Fractal Design Meshify 3 XL Ambience Pro review: glow up

Meshify 3 XL Ambience Pro isn’t just the latest and largest evolution of Fractal’s airflow-first design language – it’s a showcase of what happens when a company refuses to cut corners. Originally set to launch in January, Fractal pulled the PC case from release at the eleventh hour after identifying a minor but meaningful flaw. Now, after some tinkering in the labs, it’s ready for the world once again, complete with the quality we’ve come to expect from such a prestigious brand.

That decision sets the tone for what the Meshify 3 XL represents: refinement without compromise. Building on the strong foundations laid by Meshify 2, this third-gen design doesn’t reinvent the wheel but it does grow more capable in every direction, from ease of use to high-end compatibility.

Fractal Design Meshify 3 XL Ambience Pro

$249.99

Pros

• Stylish centrepiece
• Huge motherboard compatibility
• ARGB hub
• Easy building
• 180mm fan support

Cons

• No vertical GPU mounting

Buy at Amazon

Club386 may earn an affiliate commission when you purchase products through links on our site.
How we test and review products.

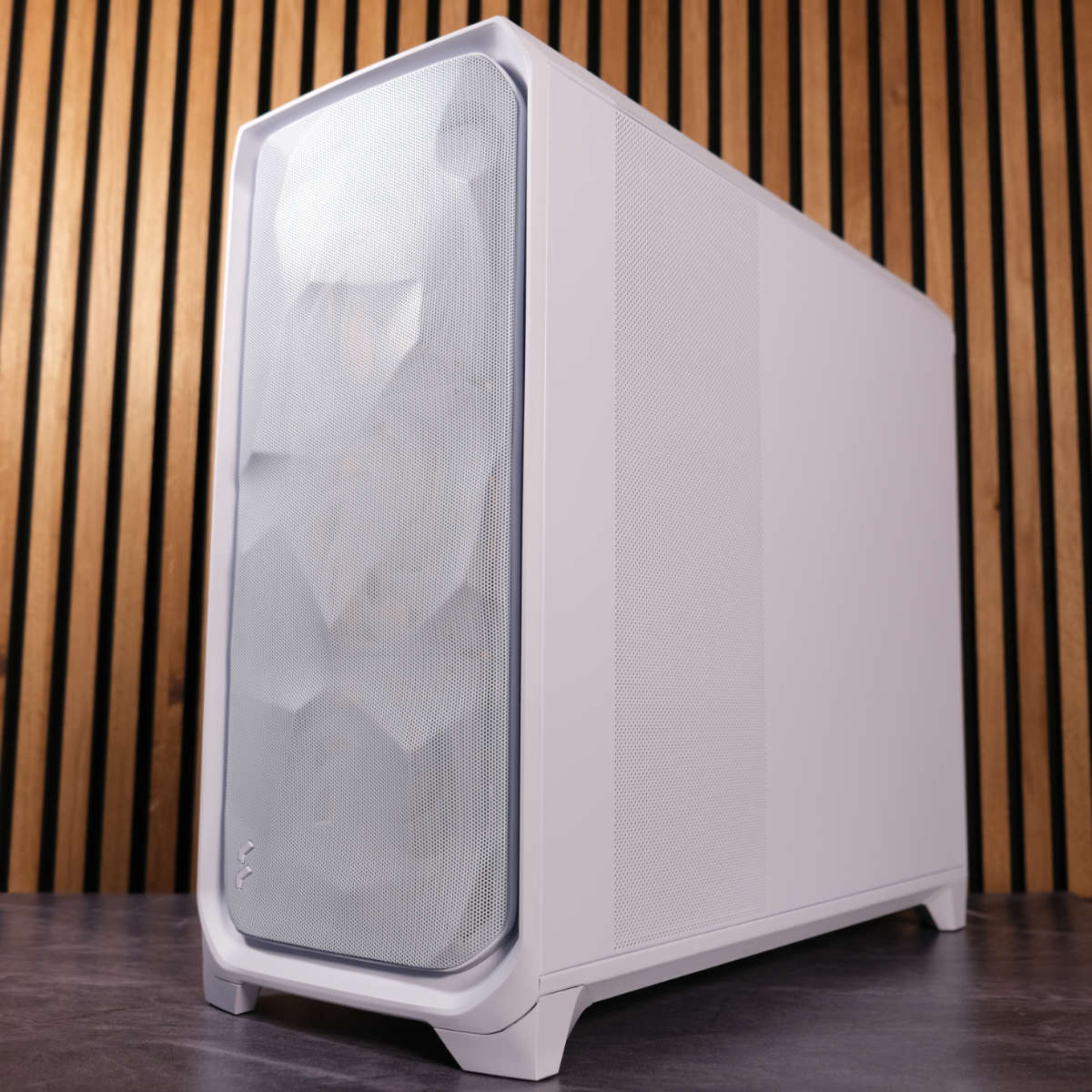

For those chasing visual flair, Ambience Pro sits at the top of the stack with a mesh front panel that joins in on the RGB goodness. While I’d argue it’s worth every penny, Fractal Design is aware that the $249.99 price tag isn’t for everyone. Fortunately, it’s not the only Meshify 3 or Meshify 3 XL on the block as there are four distinct editions that tailor to different tastes and budgets.

Specification

Meshify 3 XL Solid starts things off at $169.99, offering all the airflow with none of the flash. Its name stems from the opaque metal side panel, giving you a stealth build. Funnily enough, adding a tempered glass panel won’t cost you any extra as Meshify 3 XL TG sits at the same MSRP.

Only when you chuck lighting into the mix do prices start to rise. Meshify 3 XL RGB TG costs $189.99, complete with three Momentum 14 RGB fans and a side panel window. The things that set Meshify 3 XL Pro Ambience apart are the colourful illumination surrounding the front mesh panel and an included Adjust Pro ARGB hub to keep everything synced up.

All RGB models come in black or white editions, while Solid and TG remain exclusive to the darker shade. Perhaps even more surprising is that the bleached moulds don’t cost any extra like they do elsewhere. If you’d prefer something more slight, then you have the dinkier Meshify 3 coming in at $30 cheaper.

Despite visual differences, internal spec remains consistent across the range. All XL variants stand at 575 x 245 x 515mm tall and support ATX, mATX and mini-ITX motherboards, as well as E-ATX up to 330mm wide. There’s even room for server standards like SSI-EEB and SSI-CEB, all while not being all that much larger than Fractal Design North XL or be quiet! Dark Base 701.

Unsurprisingly, Fractal has left enough legroom for 230mm power supply units, slotting seamlessly under the shroud. Graphics cards are forever getting bigger, but there’s room for even the meatiest pixel pushers with up to 512mm of space. Considering Zotac’s PGF RTX 4090 D stretches over an eye-watering 380mm, the biggest GPU in the world, you’ll have an extra 100mm of overhead for generations to come.

There’s less redundancy with CPU clearance sitting at 173mm, but this is still on the higher end without going overboard. Opt for an AIO, and you’ll spot room for up to a 360mm radiator at the front and a 280mm unit up top, both aided by removable mounting brackets that make installation refreshingly straightforward.

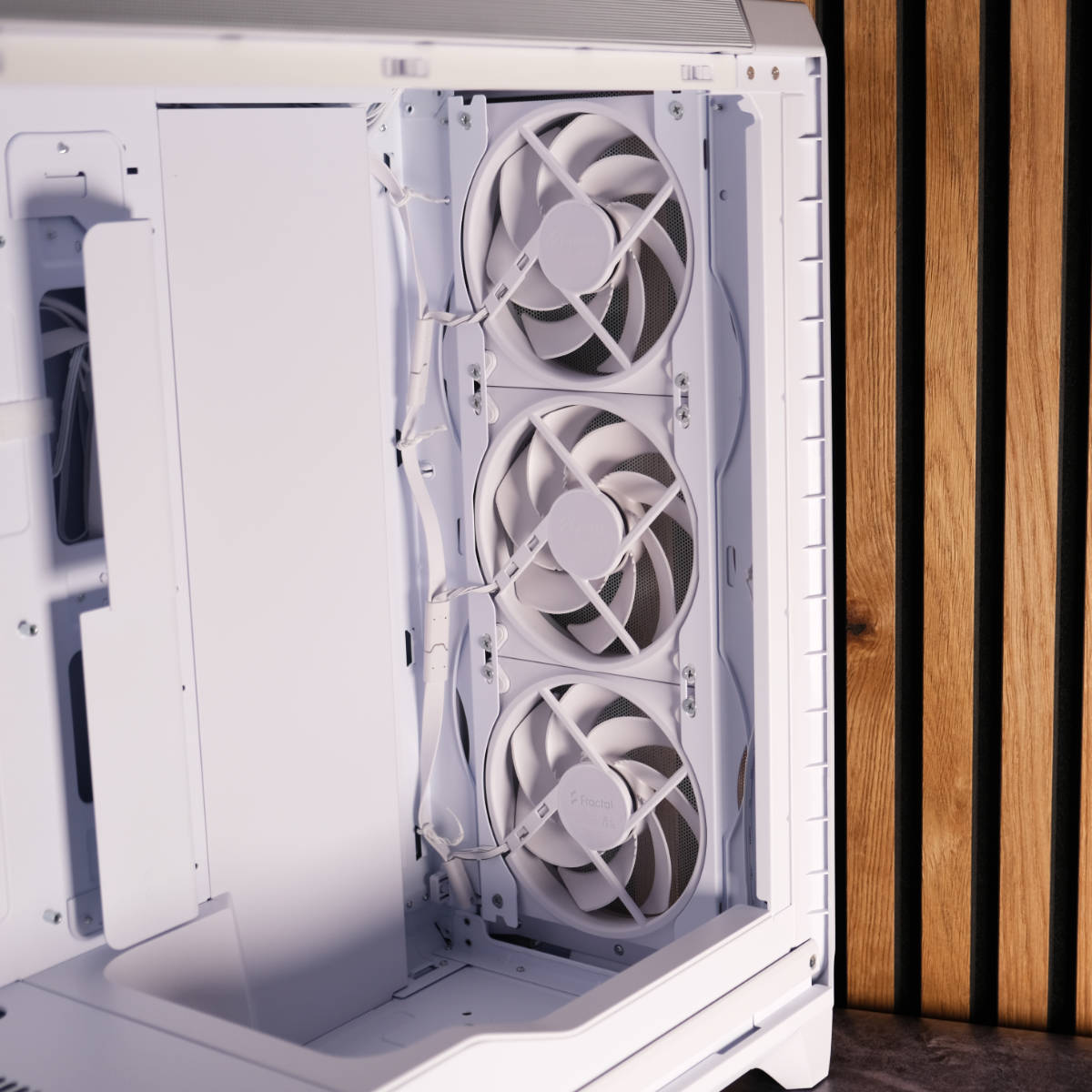

Fan support is equally generous with space for up to ten 140mm fans. Swap three of those out and you can even supplant two mammoth 180mm models at the front. Fractal includes three 140mm Momentum 14 RGB fans out of the box, ensuring immediate airflow and a gorgeous splash of colour.

Fractal Design develops these spinners in-house to deliver strong airflow without the racket. Each unit features seven liquid crystal polymer blades, fluid dynamic bearings, and rubberised mounts to dampen vibration. They’re PWM controlled with a wide operating range of 350–1800 RPM, pushing up to 74.39 CFM at a peak noise level of 28dBA. Zero-RPM functionality keeps things silent under low load, while the custom eight-pin daisy-chain cabling simplifies installation and keeps clutter in check should you fancy adding any more.

Storage is flexible, with two dual-purpose drive mounts behind the motherboard tray, each supporting a 3.5in HDD or two 2.5in SSDs, plus extra 2.5in mounting points on the case floor. Six 2.5in drives is certainly tempting, but I’d be partial to four with a chonky 3.5in hard drive to maximise capacity without breaking the bank. On one hand, this is plenty more than most modern chassis, as reliance shifts to M.2 SSDs. On the other, Meshify 3 XL is larger than Fractal Design Define 7 but lacks the ability to expand.

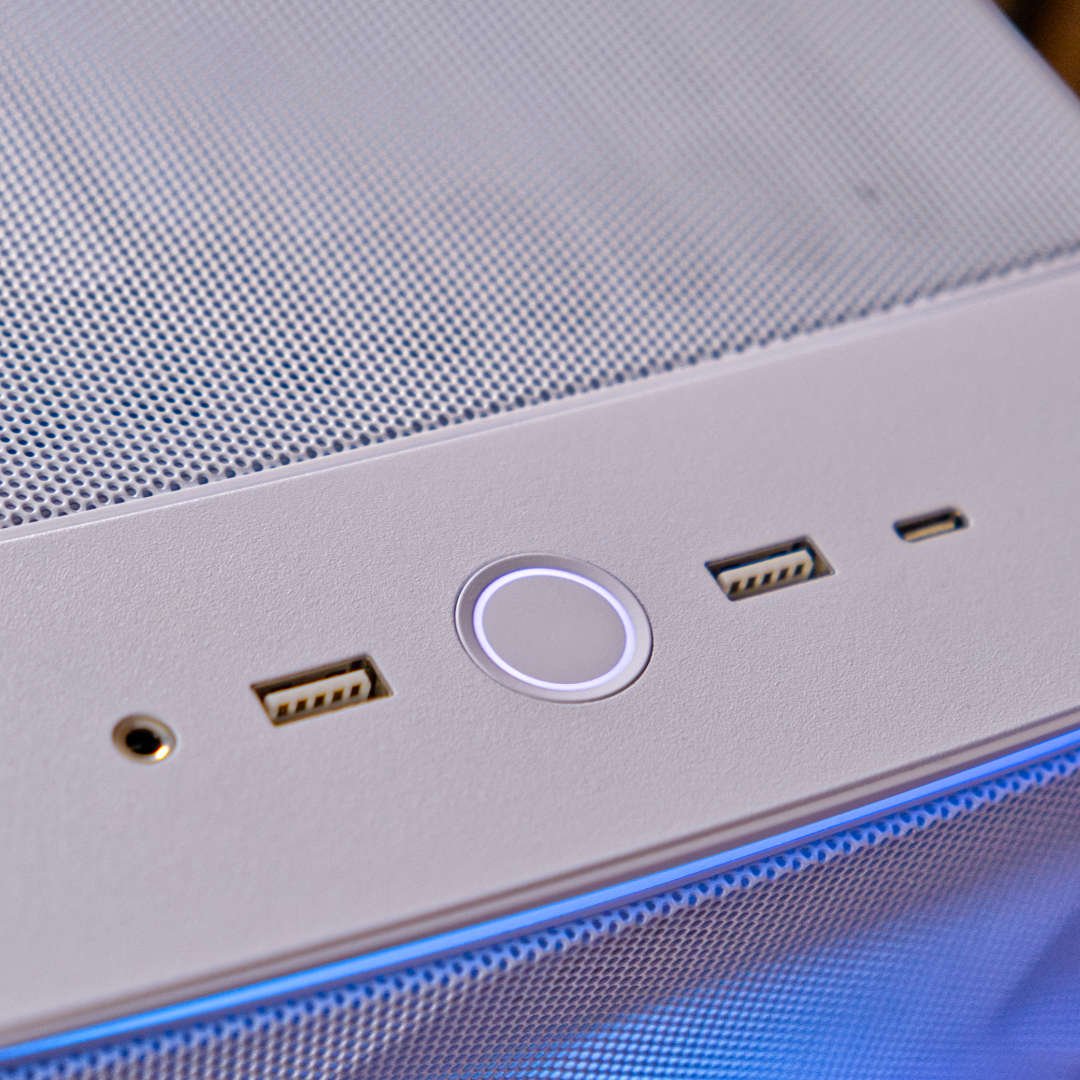

Finally, the front I/O is suitably modern, with USB-C 20Gb/s leading the charge alongside dual USB-A 5Gb/s ports and a combined mic/headphone jack. There’s no reset button to go with the power switch, but that’s as common as it comes in 2025.

Building

First impressions count, and Fractal nails the basics. Meshify 3 XL ships with an accessory box containing everything you need to get started – motherboard standoffs, screws for SSDs and HDDs, and a generous supply of cable ties. There’s also a legacy splitter for RGB lighting and a Fractal Connect Cable already plugged into the pre-installed Adjust Pro Hub. It’s a full kit, and the kind of detail that ensures you’re not scrabbling around for extras mid-build.

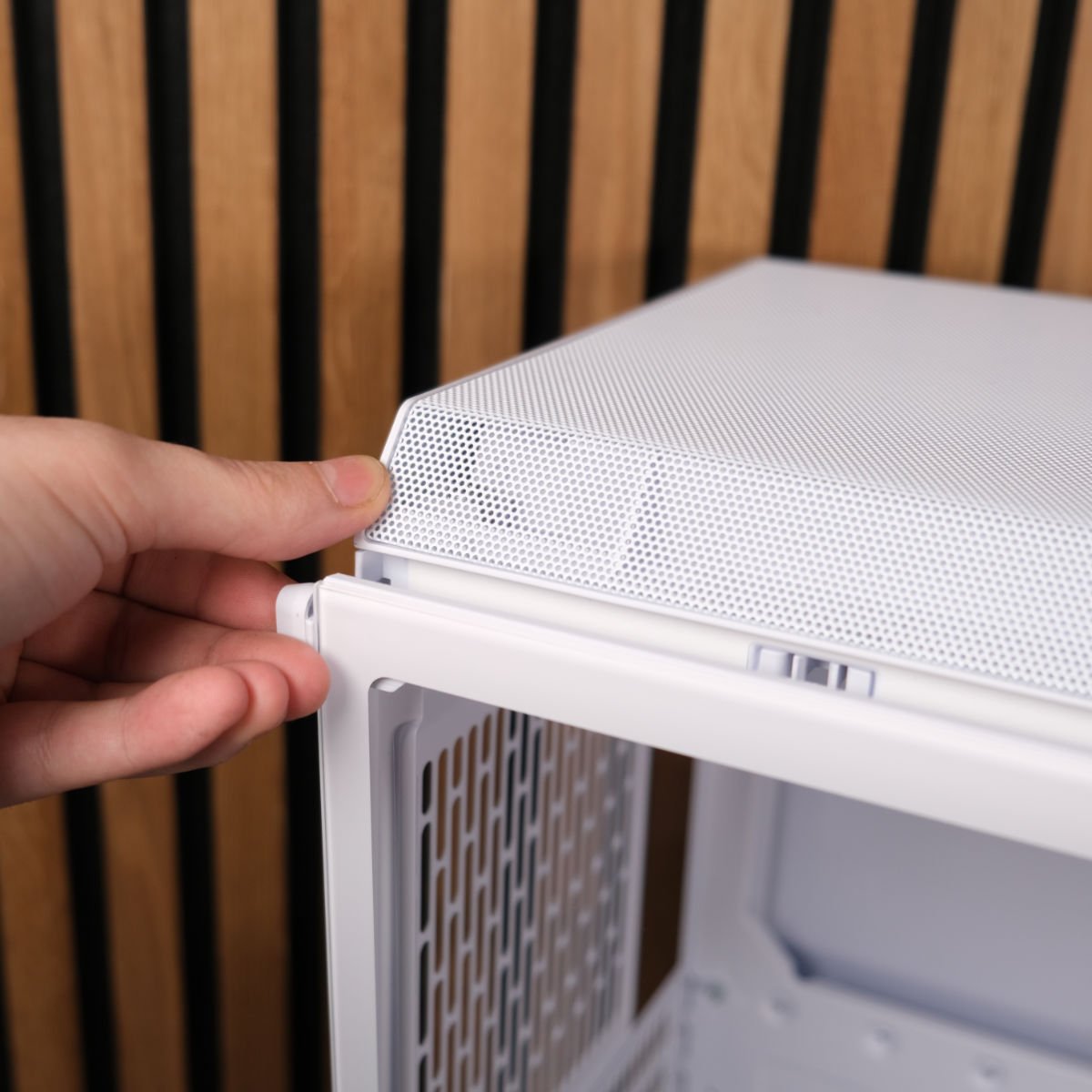

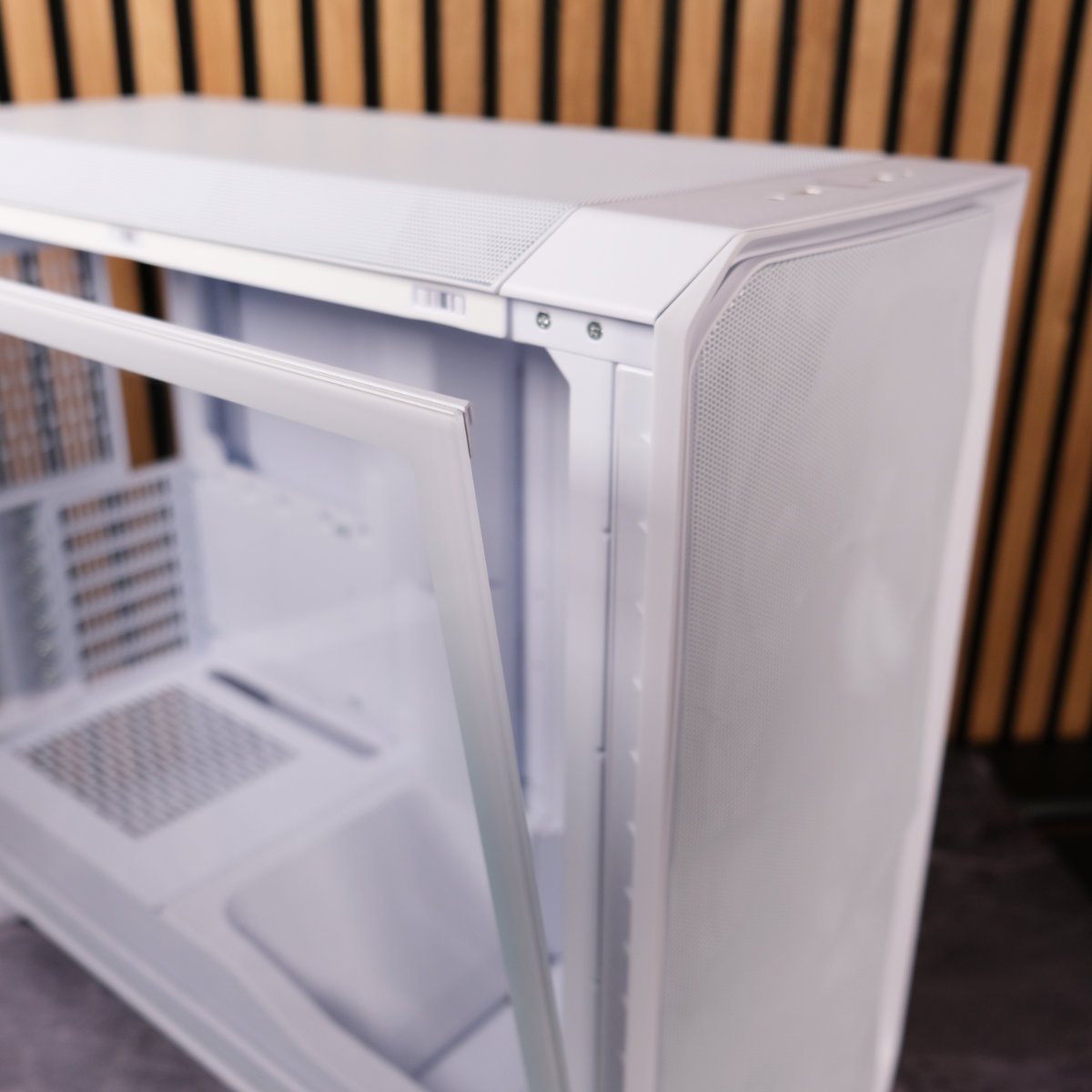

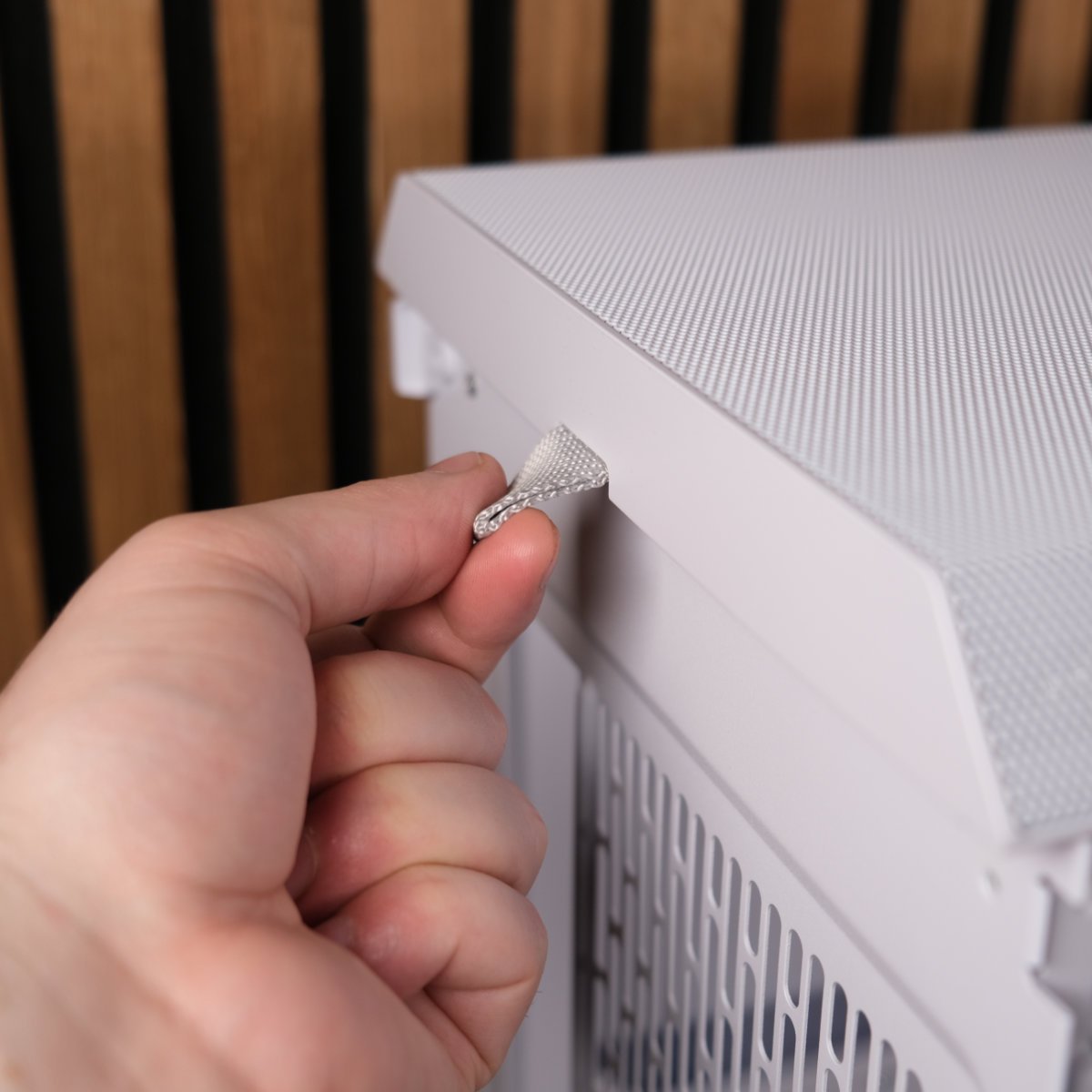

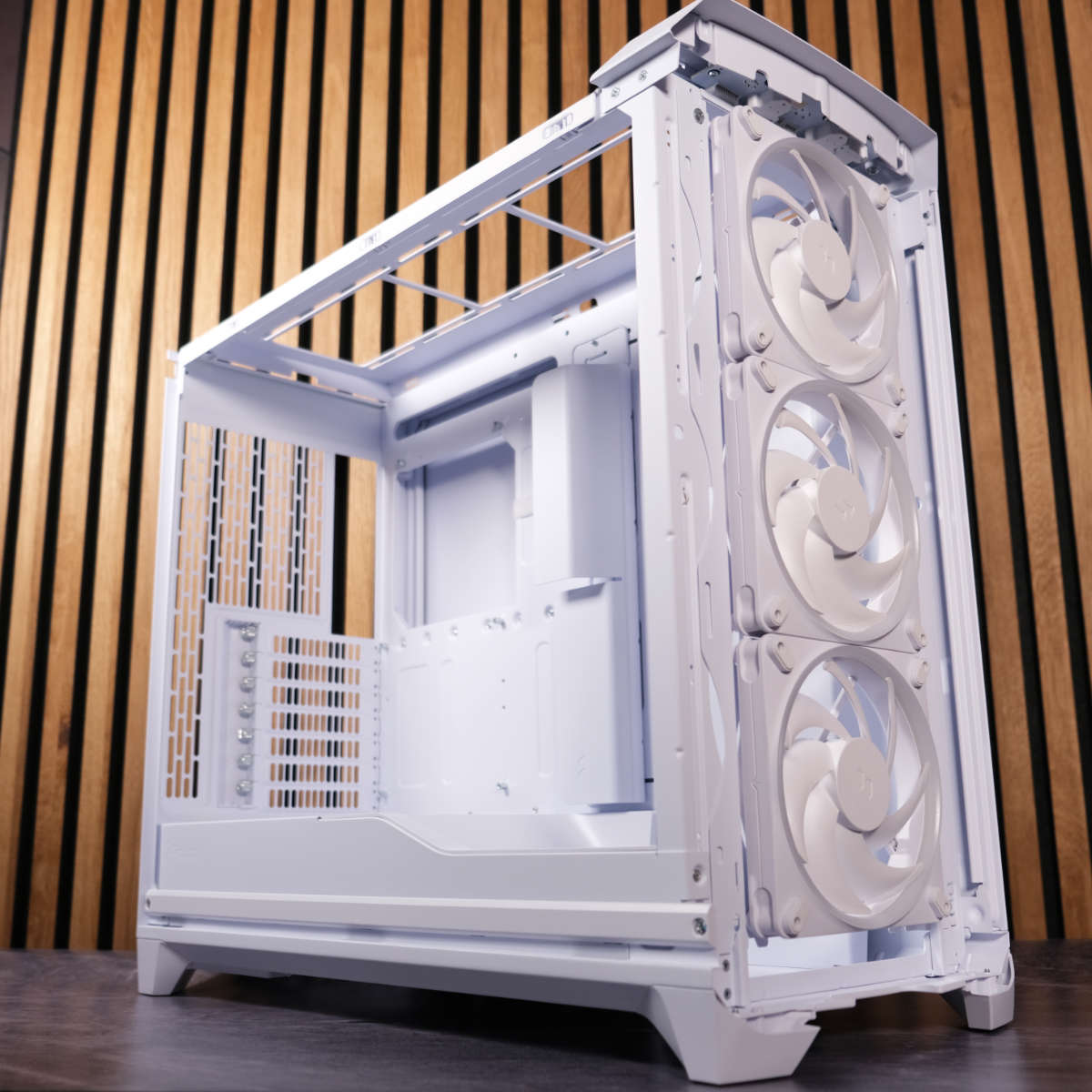

Accessing the interior is faff-free. Both side panels clip on and off without thumbscrews, and while I’d still prefer a quick-release button for the tempered glass side to avoid any accidental dislodging, the current system is easy to line up and sits firmly once in place. The same toolless approach applies to the top panel – simply pull the recessed tab and it lifts away. Just be mindful during transport, as it can slide loose if you grip the top-rear edge.

Perforations above and below the PSU shroud allow your power supply to breath no matter its orientation, but it’s barely a choice with a clear winner. Facing your power supply downwards not only draws in a fresh breeze rather than air that’s already heated up, it combats dirt with a full-length dust filter to keep intake clean.

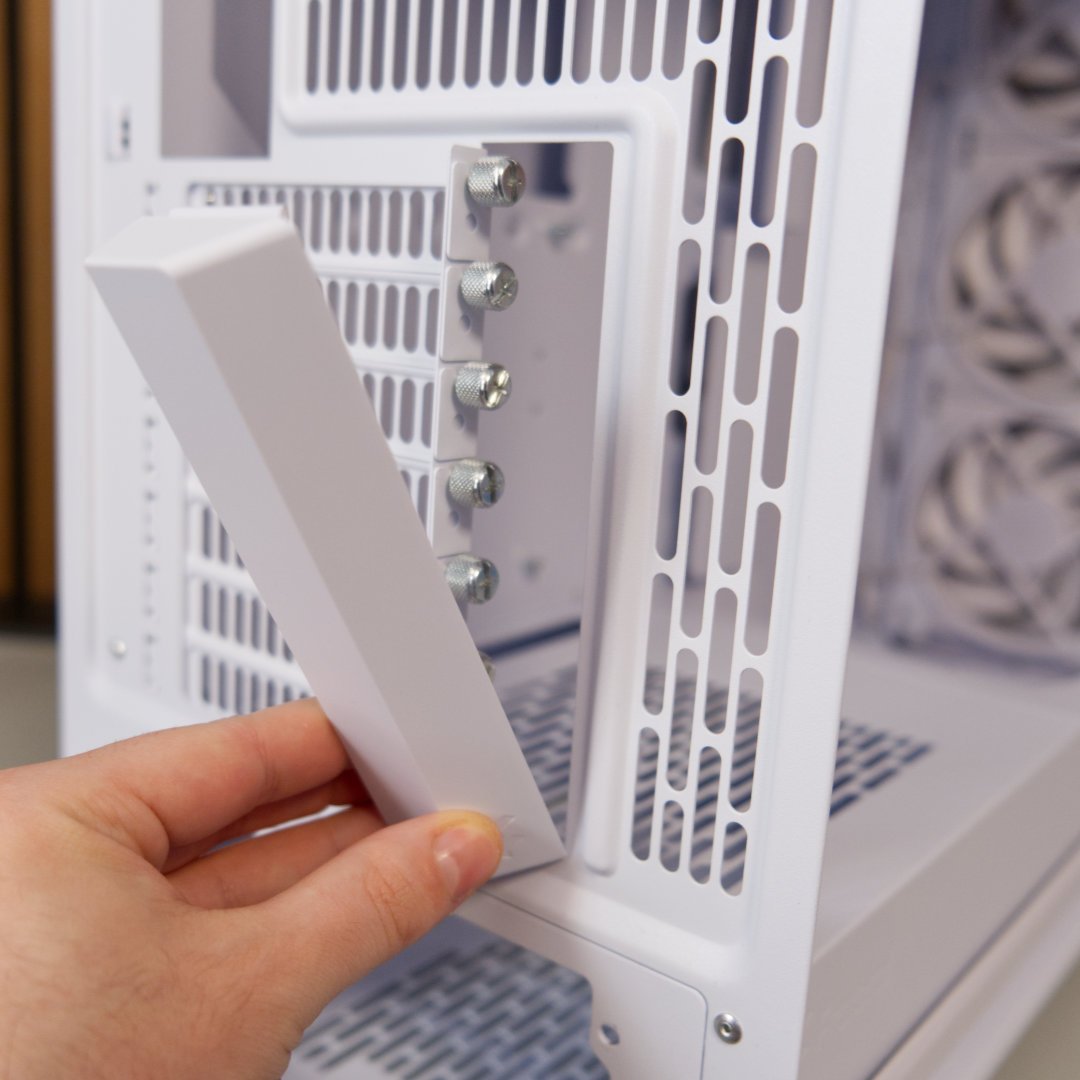

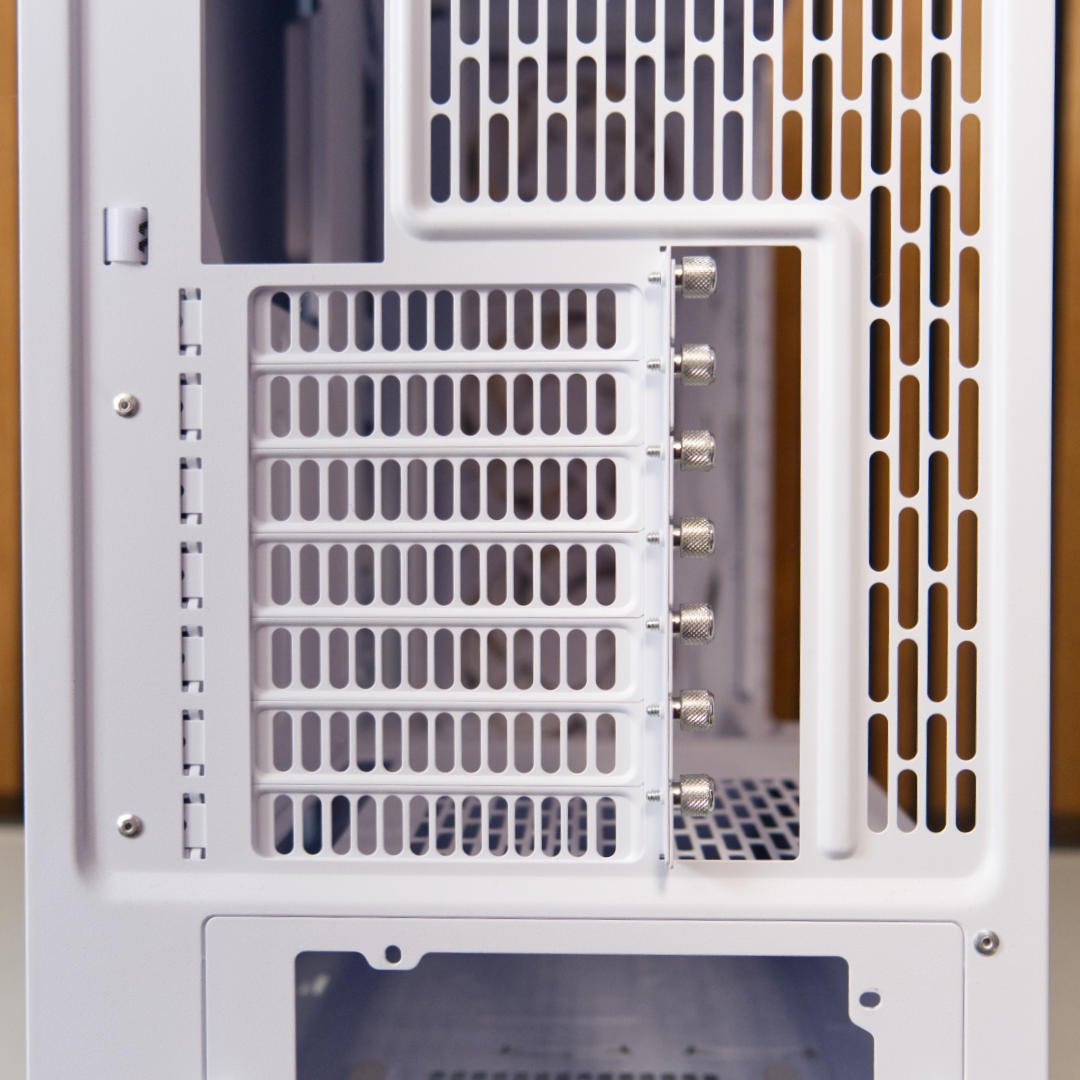

There’s an extra step when installing your graphics card, as all Meshify 3 models comes with a GPU guard to plug a noticeably large gap above the thumb screws. It’s a particularly painless clip that doesn’t require a single tool, but the gap itself highlights a missed opportunity in that you can’t vertical mount like you can on be quiet! Pure Base 501. Maybe this is in the works for Meshify 4, but for now, we have a fetching shield that returns your chassis to its former glory.

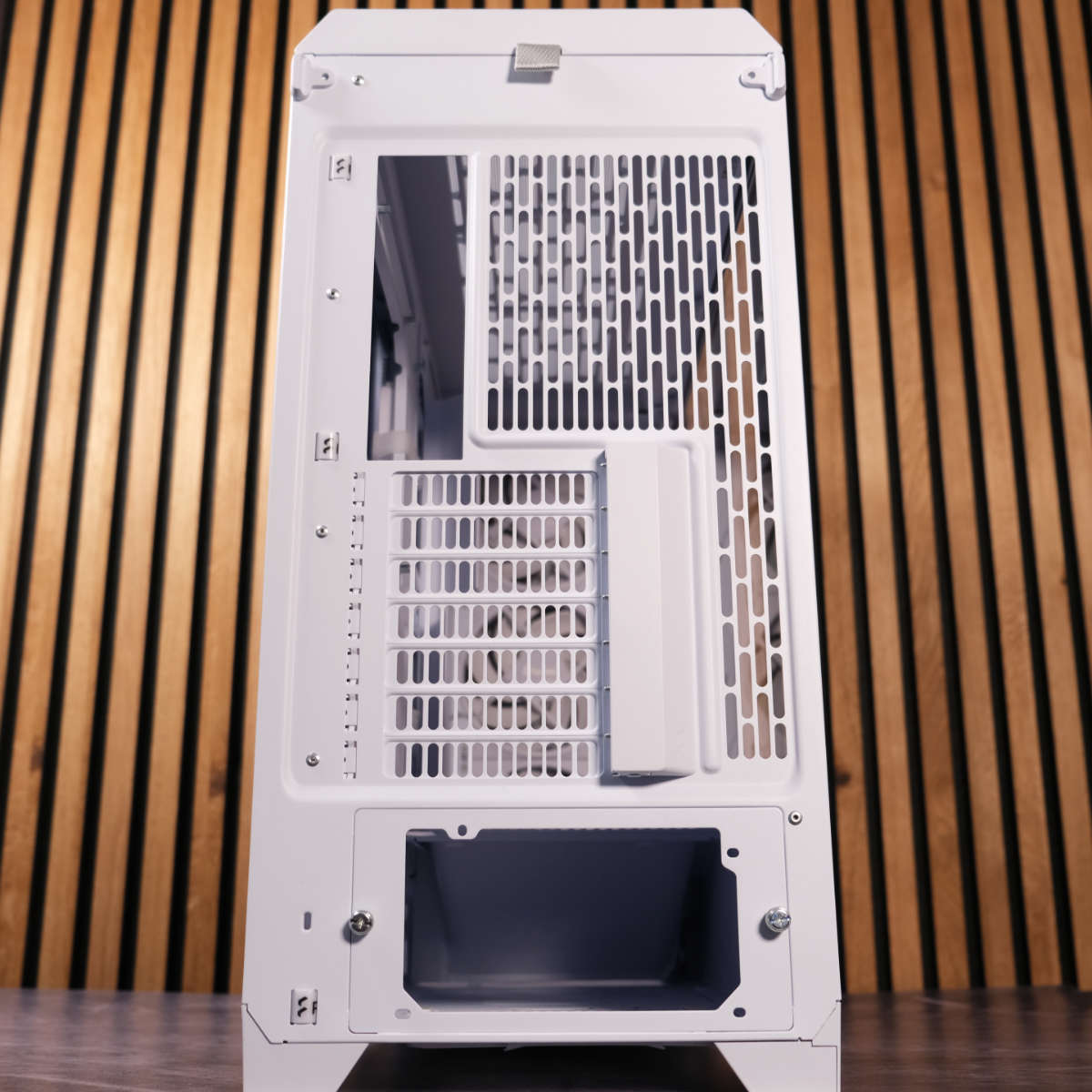

This is part and parcel with Fractal’s design to keep the rear of the case flush, relying on a bridge-type PCIe slot. In early samples, like ours, some featured thicker teeth that made it difficult to slot in our graphics cards without prying it open with a screwdriver. Fortunately, the brand identified this issue quick enough to postpone its launch, updating its manufacturing guidelines for upcoming productions and modifying existing units so none suffer from the same problem. Gotta love a company that takes accountability.

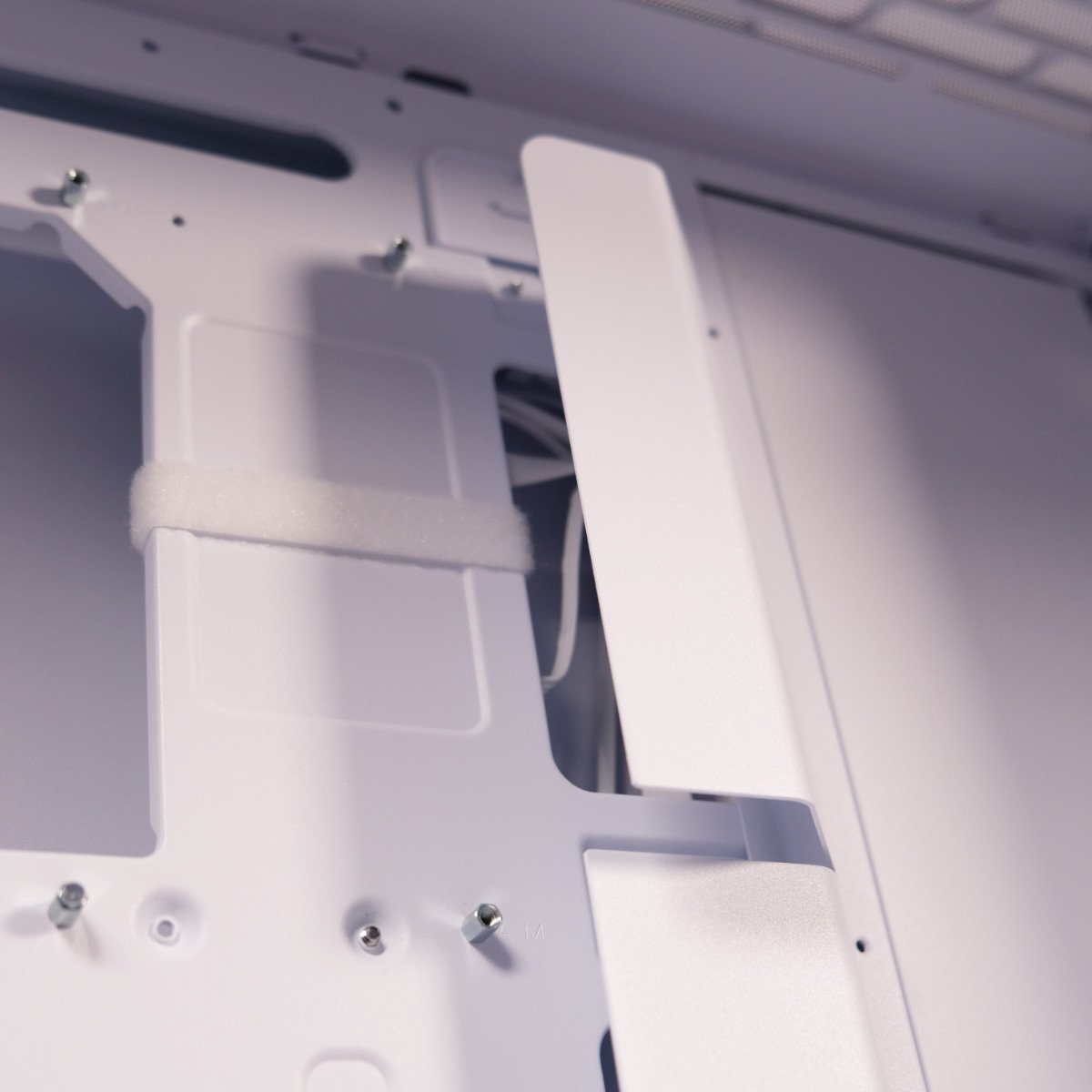

On the Ambience Pro models, you’ll find the preinstalled Adjust Pro RGB Hub behind the motherboard tray, which neatly ties together fan and lighting duties. The SATA-powered unit is already wired up with the chassis fans and case lighting, leaving two spare ports for future Momentum additions. I wasn’t a fan of the velcro strap holding the unit in place as it crept through to the front but it turns out this is solely for shipping. You can repurpose it to tame thicker cables clusters and rest easy knowing the hub suspends itself magnetically.

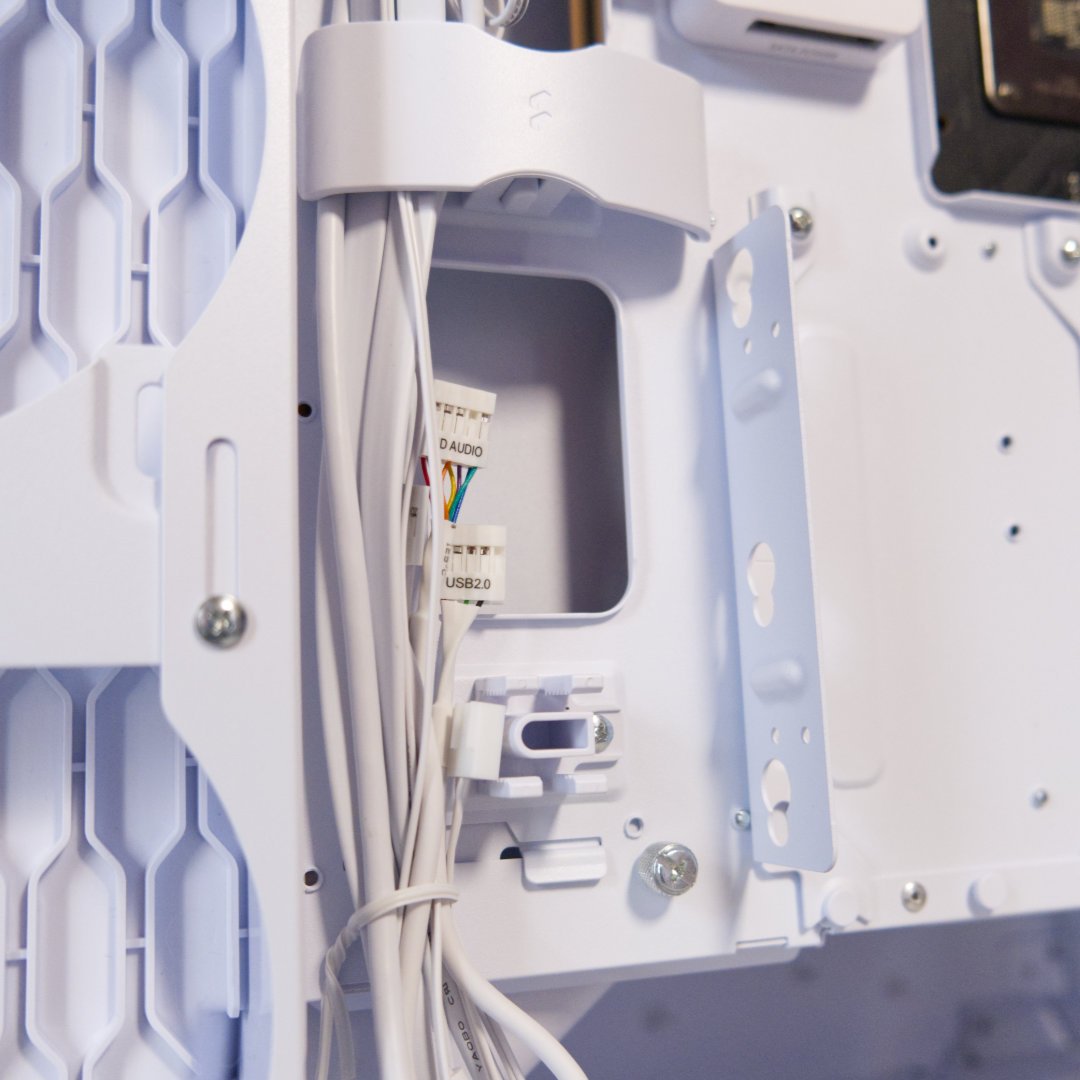

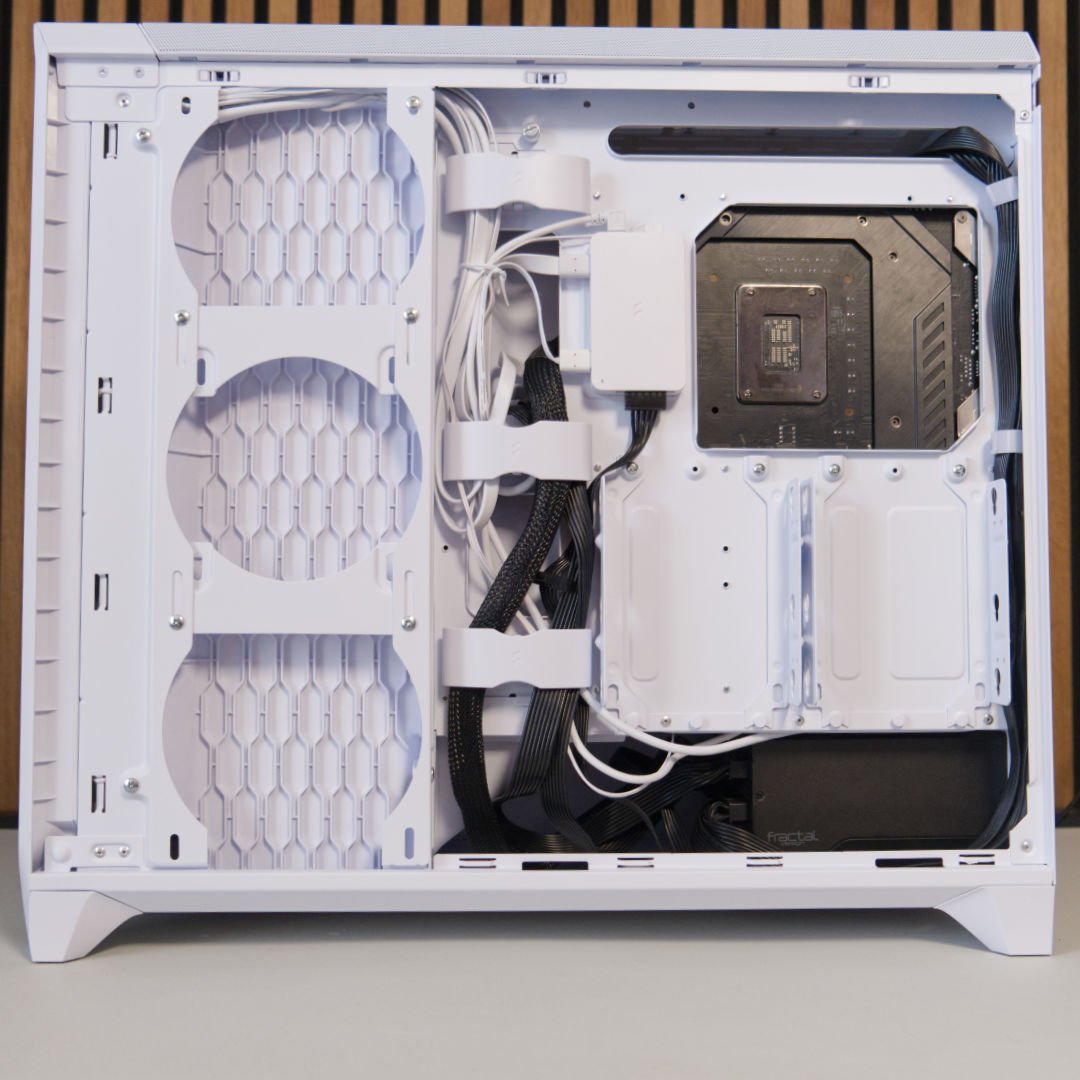

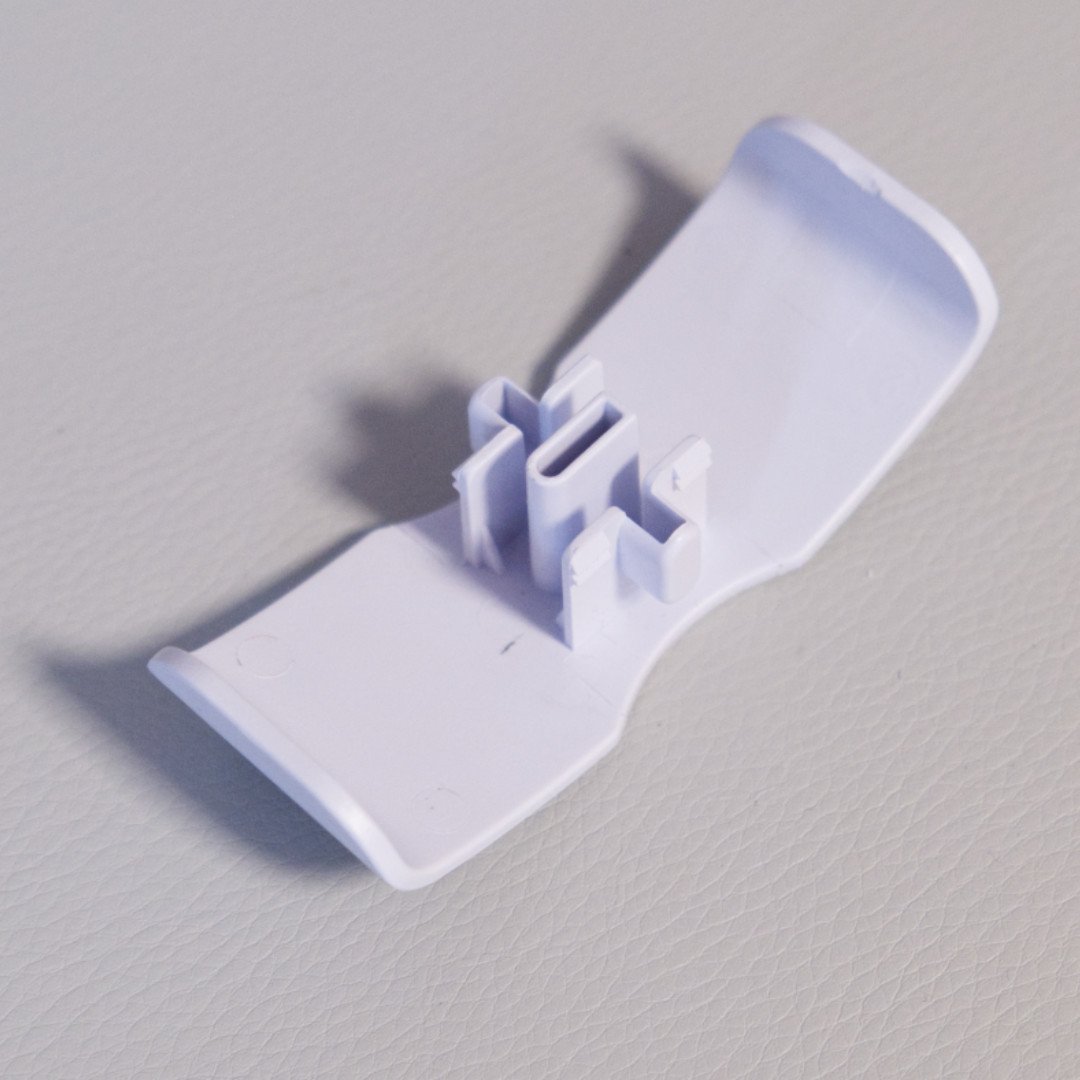

Working its cable routing wizardry, Fractal has incorporated my new favourite method to keep those spaghetti of wires under control. While there are plenty of general-purpose ties you can use, it’s the trio of plastic binders along the central trench that take the spotlight. Each one is notched and doesn’t buckle under the tension of wires fighting to break free from their confines. It’s not a perfect solution, but it’s one of the best I’ve seen to date.

Of course, no amount of cable management magic prepares the PC case for the unweildiness of 12VHPWR or 12V-2×6 adapters. Two, three, or four cables protruding through the rear shields certainly draws the eye and not in a good way, but this is something only a PCIe 5.0 power supply can fix.

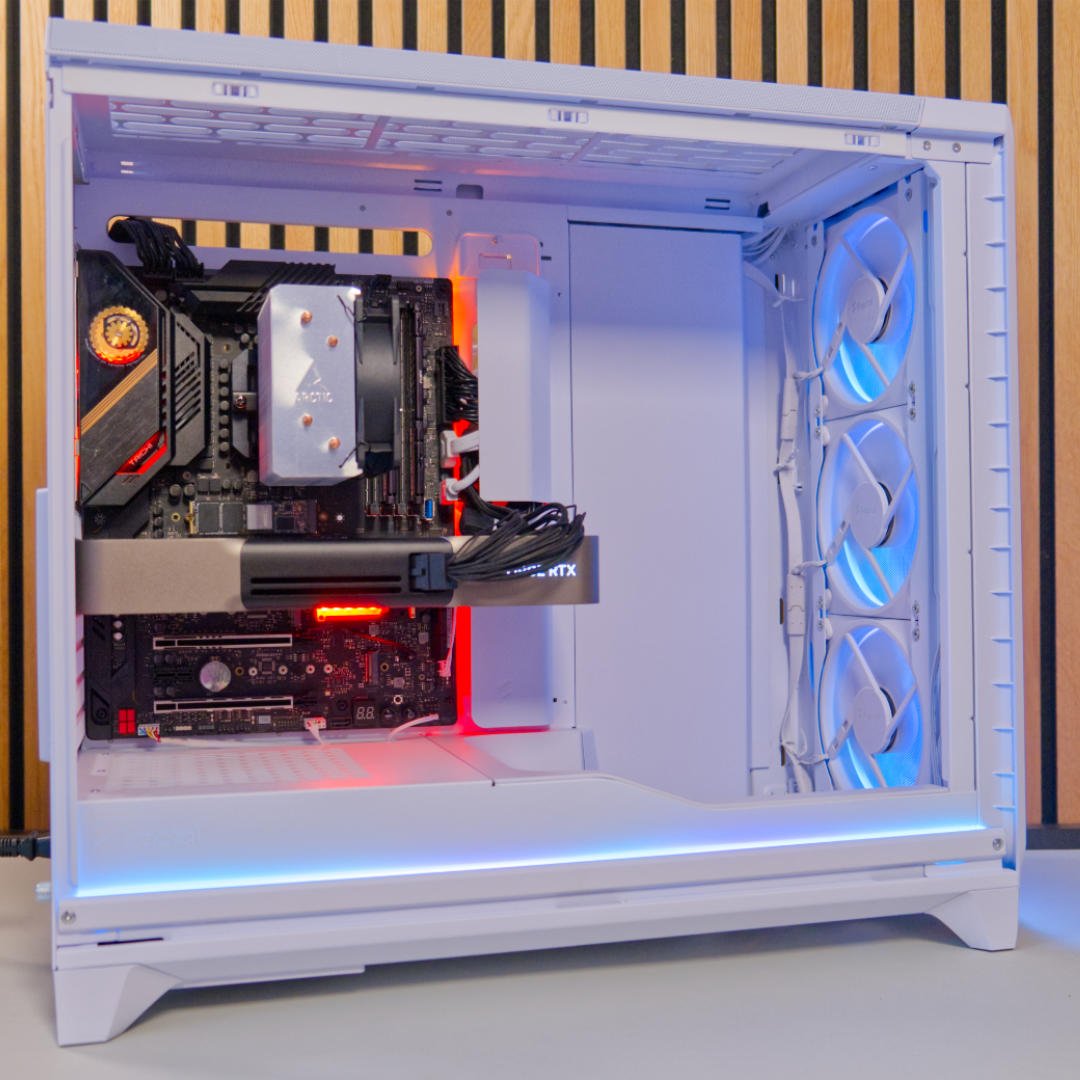

With everything in place, airflow planning is intuitive. The default fan layout pulls air through the sculpted mesh front, guided toward the GPU by Fractal’s internal curved Air Guide situated at the bottom, while optional top and rear mounts exhaust hot air efficiently. If you’re running a large air cooler or a multi-rad loop, Meshify 3 XL’s layout makes accommodation easy – and crucially, it does so without requiring builder acrobatics.

Conclusion

Meshify 3 XL Ambience Pro is a case that earns its space both physically and philosophically. It’s a rare full-tower that feels genuinely purpose-built, with smart airflow design, superb cooling flexibility, and builder-friendly touches throughout. The decision to delay launch in favour of quality speaks volumes, and what’s arrived is a confident, capable chassis that doesn’t just meet expectations but restores a little faith in how premium cases should be delivered.

A few quirks remain, albeit relatively minor ones. The plastic GPU guard, while neat, adds an unnecessary step and makes the absence of vertical GPU mounting all the more obvious. Storage options are also on the leaner side for a case of this size, but such is the price of greater, uninterrupted airflow. These are small marks against what is otherwise a top-tier chassis.

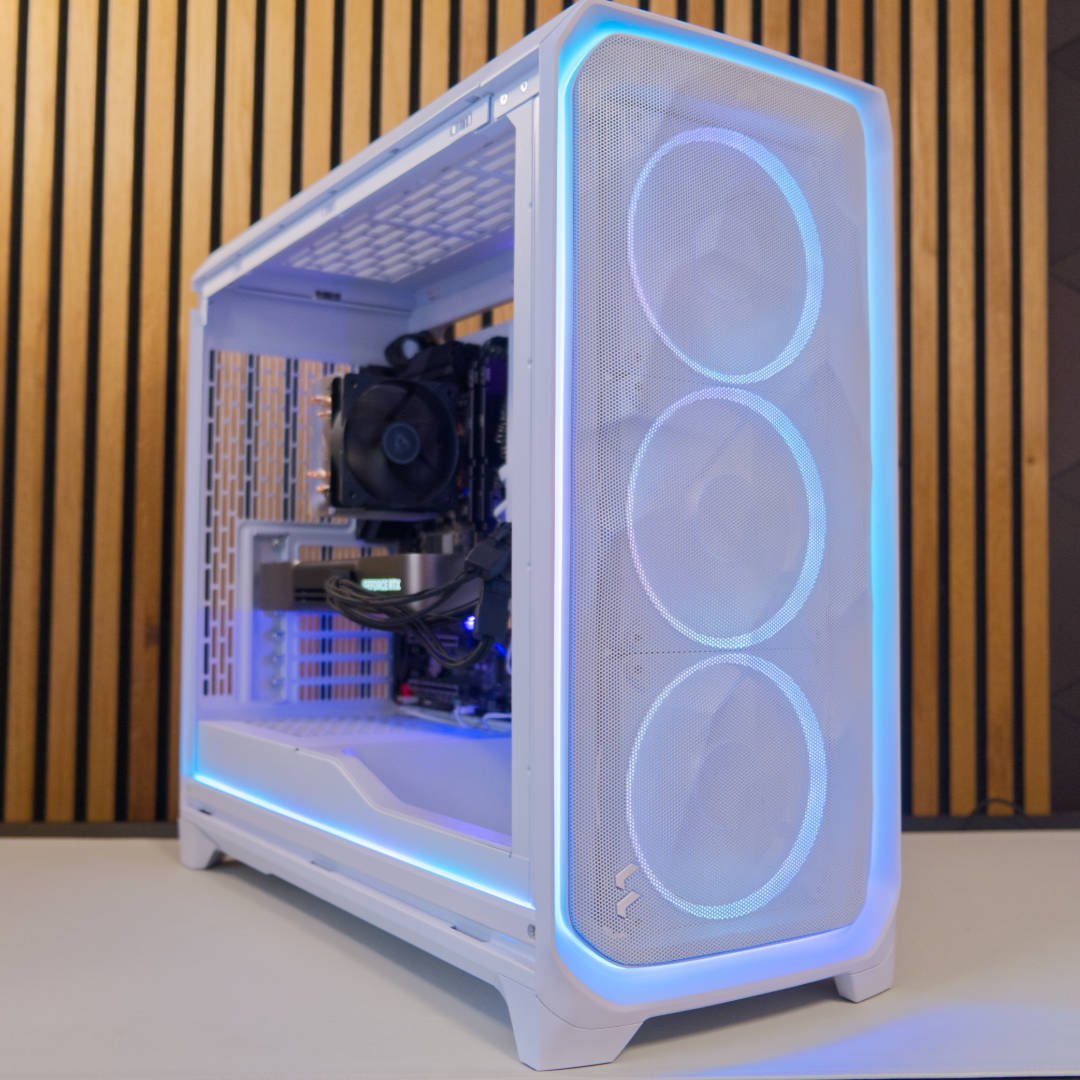

Ambience Pro edition, in particular, brings tasteful lighting to the table without resorting to gaudy excess. The glowing mesh front is distinctive yet understated, and Fractal’s no-software, browser-based control system is a breath of fresh air. Add in excellent radiator and fan support, clean cable routing, and a refined exterior design, and you’ve got a case that does almost everything right.
